Catalina 28 | Chris-Craft Boats

LENGTH

29'7" / 9 m

BEAM

9'0" / 2.7 m

DRY WEIGHT

8,680 lbs / 3,937 kg

STARTING AT

$346,690*

THOUGHTFULLY DESIGNED

The additional space of the Catalina 28 beautifully enhances your adventures on the water. At the helm, enjoy our unique reversible seat paired with a sliding YETI® cooler, or upgrade to a wide seat with cockpit galley, featuring a refrigerator drawer, freshwater sink, and more. The waters are wide open. You deserve to live large.

KEY FEATURES
GALLERY
SPECS

BEAUTIFULLY APPOINTED

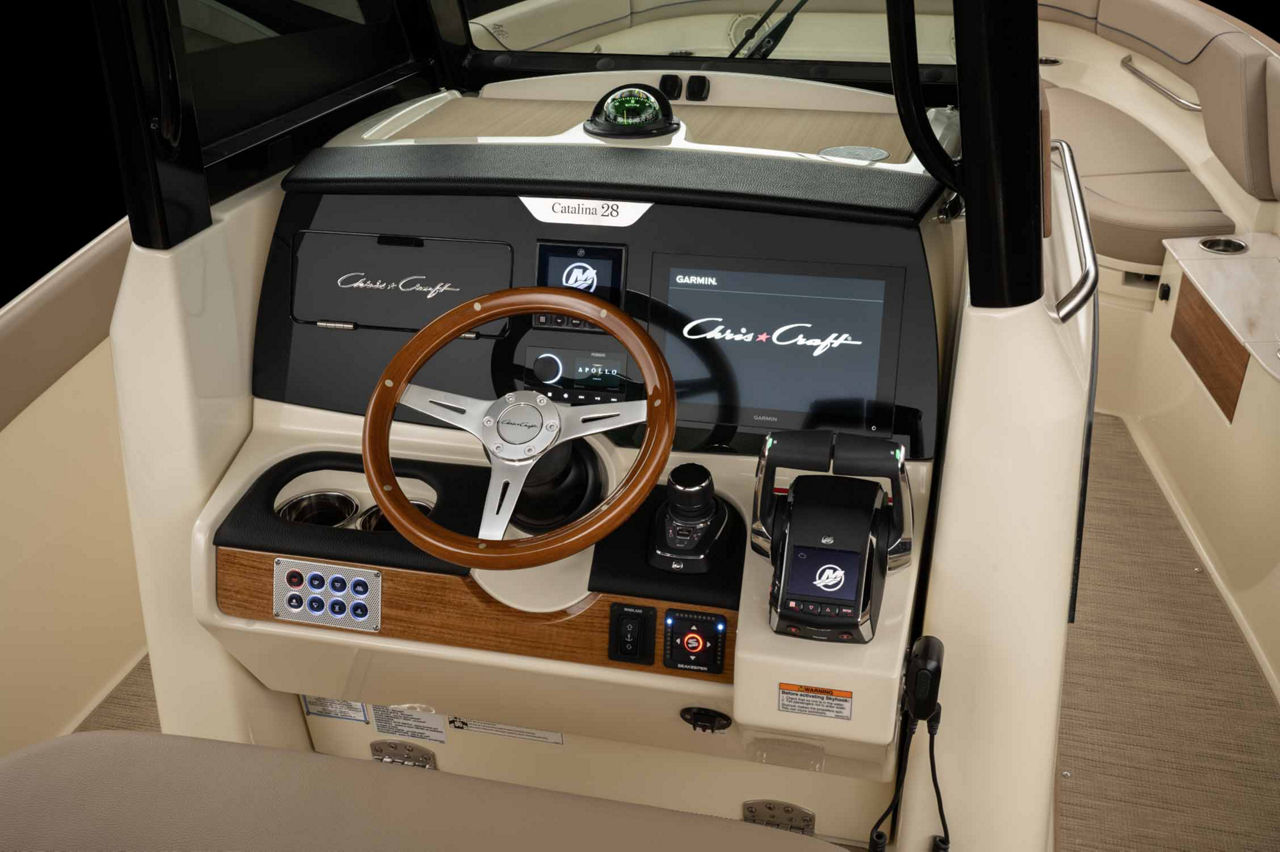

A classic high-gloss teak steering wheel centers the space, which includes a flush-mounted 12" Garmin® display with CZone® switching. A port display replaces the glove box when you opt for dual 12" displays. Positioned at the helm, an inductive phone charger and powered USB ports await your devices.

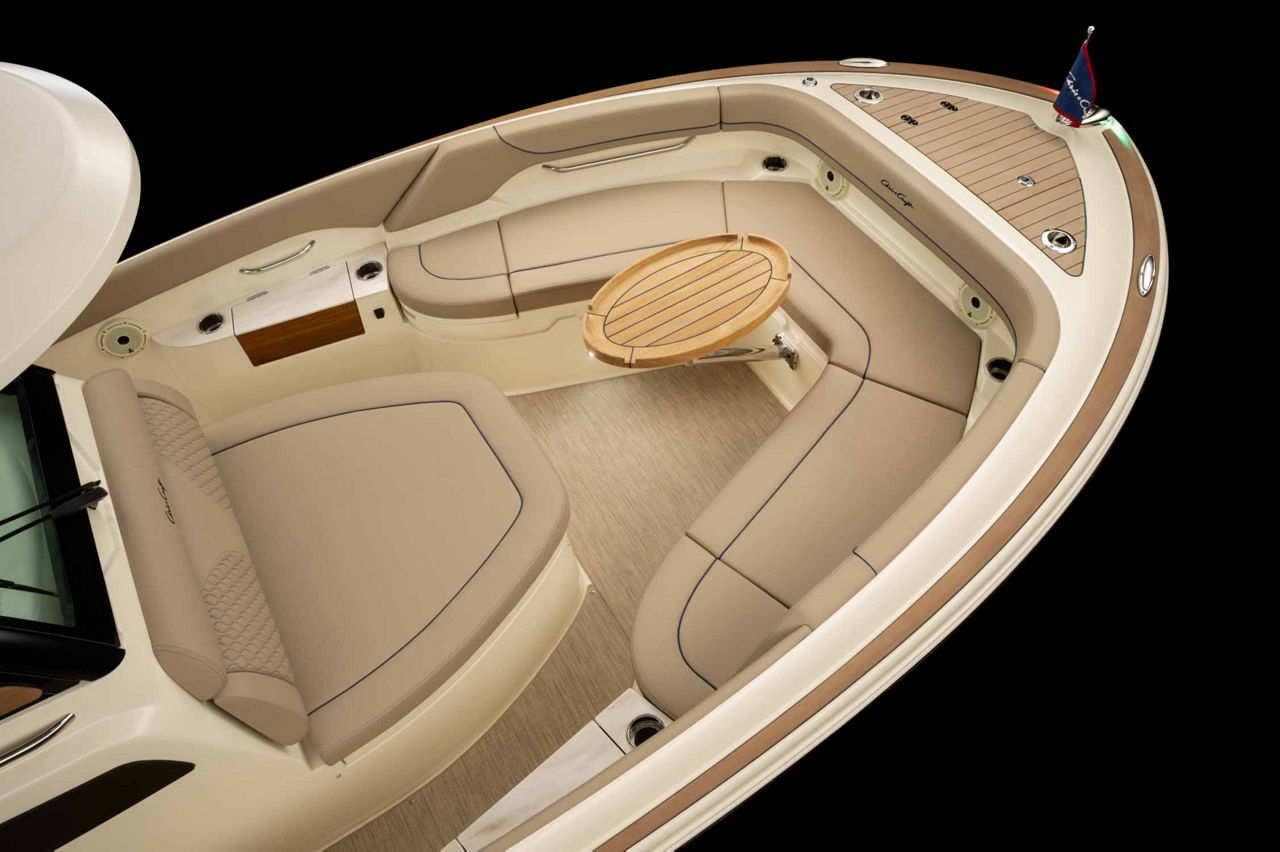

SPACIOUS LUXURY

Invite friends out for the day with welcoming bow seating that encourages lounging all around. Hinged backrests increase comfort for those in the bow, and they’ll find plenty of storage beneath each seat. Magnetic seat cushions, well-placed USB ports, and solid-surface countertops add stylish practicality throughout.

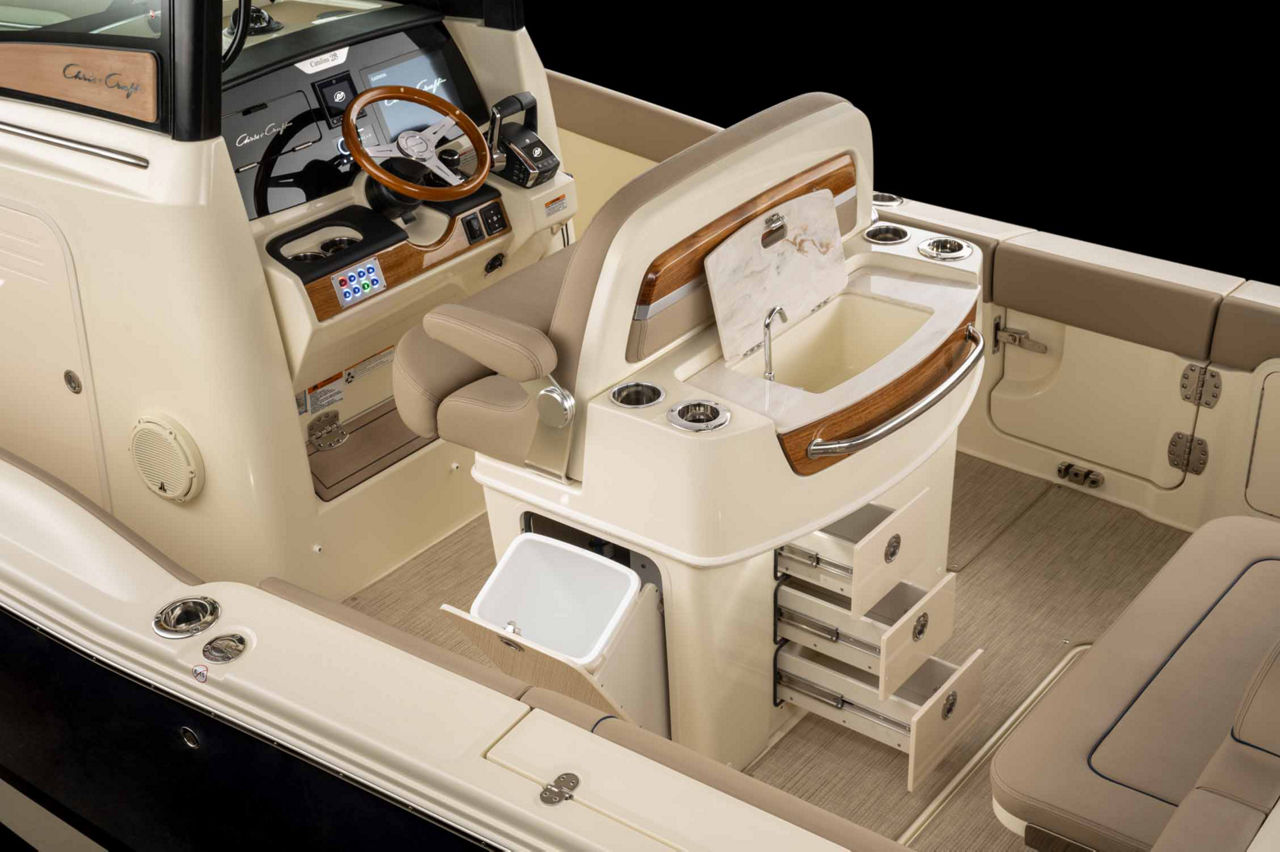

ELEVATED ENTERTAINING

With its rich wood and stainless steel accents, the optional cockpit galley is sleek and practical. Breeze through everything from prep to cleanup with a drawer refrigerator, ample drawer storage, a freshwater sink, and a tip-out trash receptacle. The galley also pairs with a wide helm seat featuring flip-up armrests and bolster for the captain’s comfort.

FORM MEETS FUNCTION

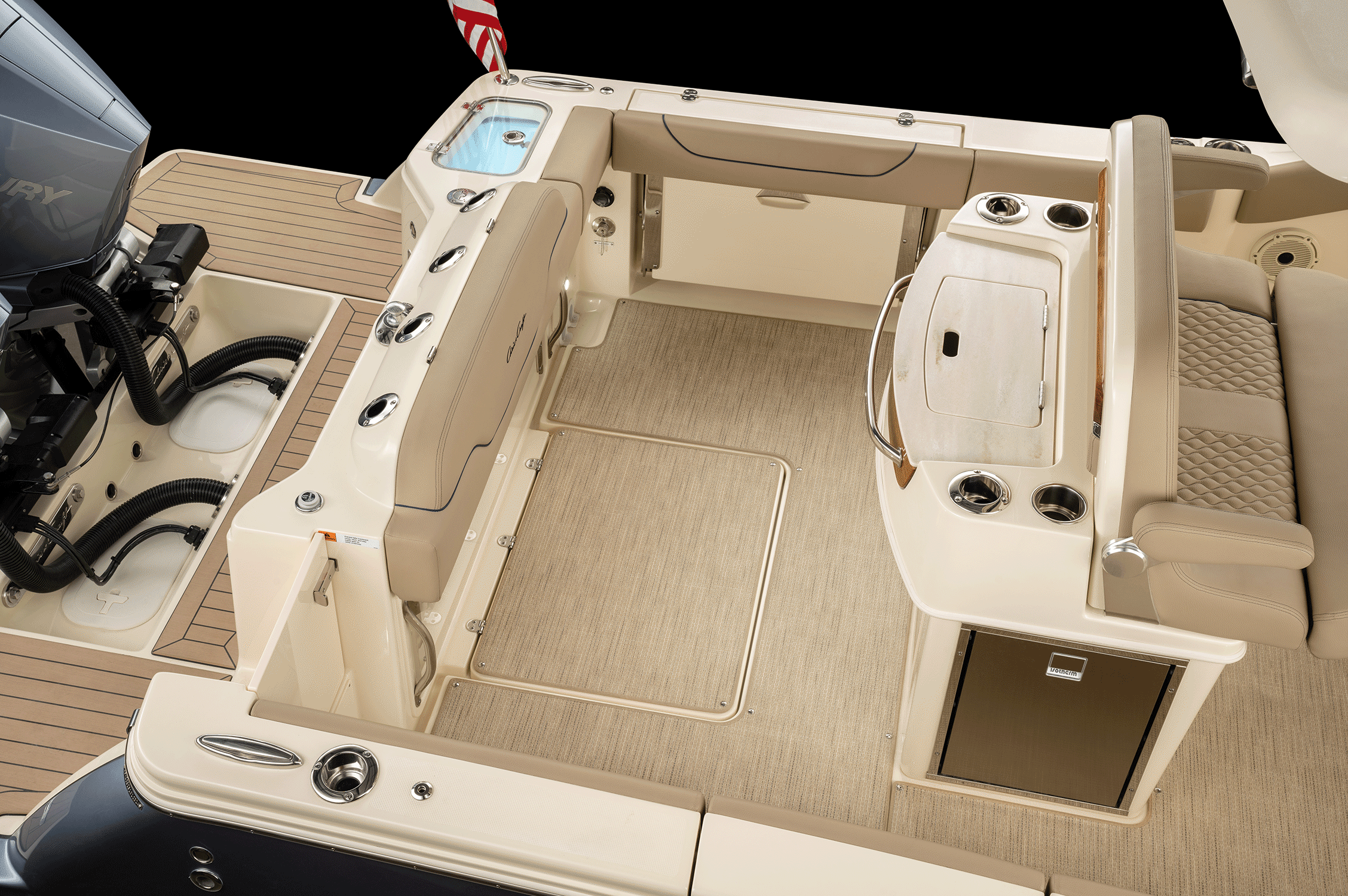

The extended swim platform’s appeal is enhanced by the rich style and easy maintenance of its synthetic teak flooring. Elevate the flooring to genuine teak for a natural non-skid surface, via optional Heritage packages. The handheld shower and optional pop-up ski pylon stow away to preserve the beauty of your Chris-Craft experience.

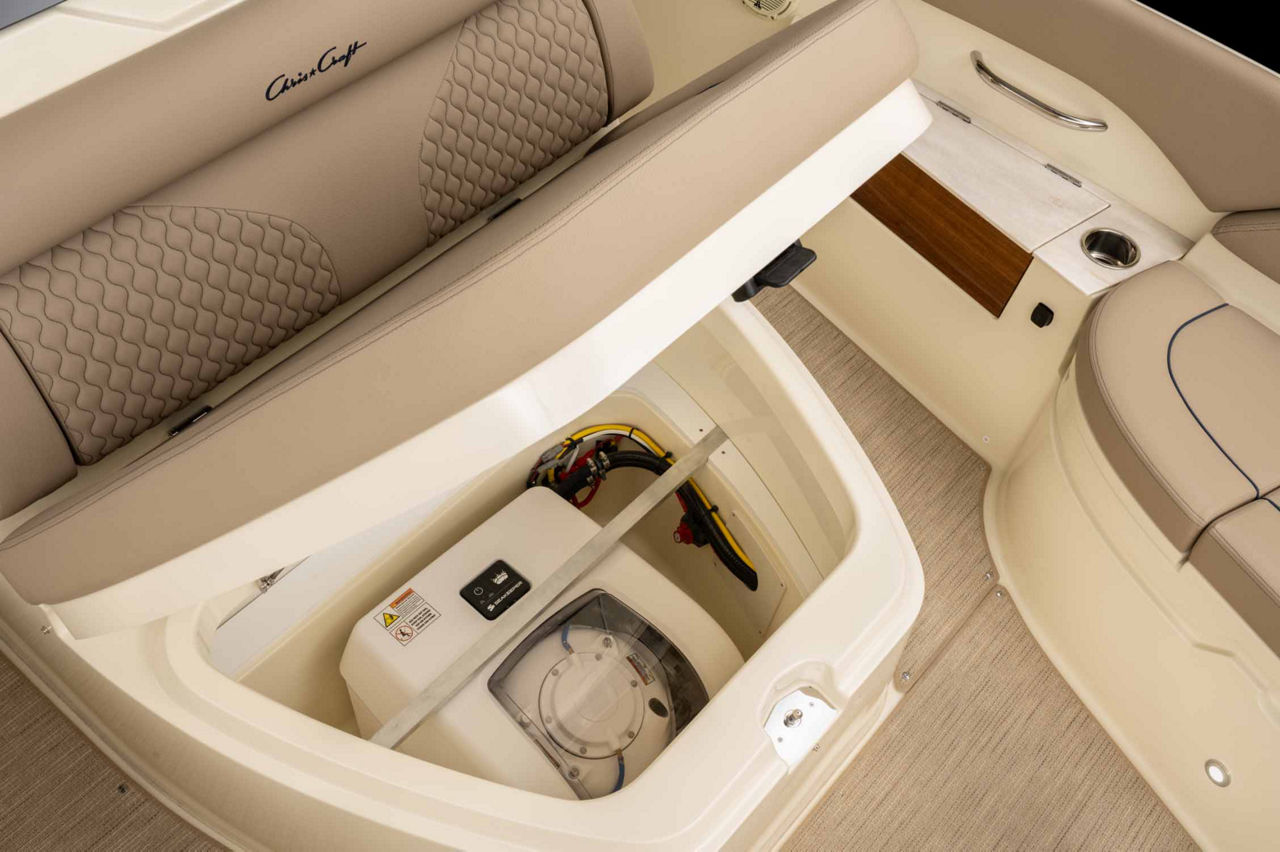

CALM AT REST

The optional Seakeeper 1 gyro stabilizer is designed to eliminate up to 95% of boat roll, significantly reducing unwanted rocking. Switch it on for nearly instantaneous results, and enjoy the comfort of stability.

VIEW THE EXTERIOR

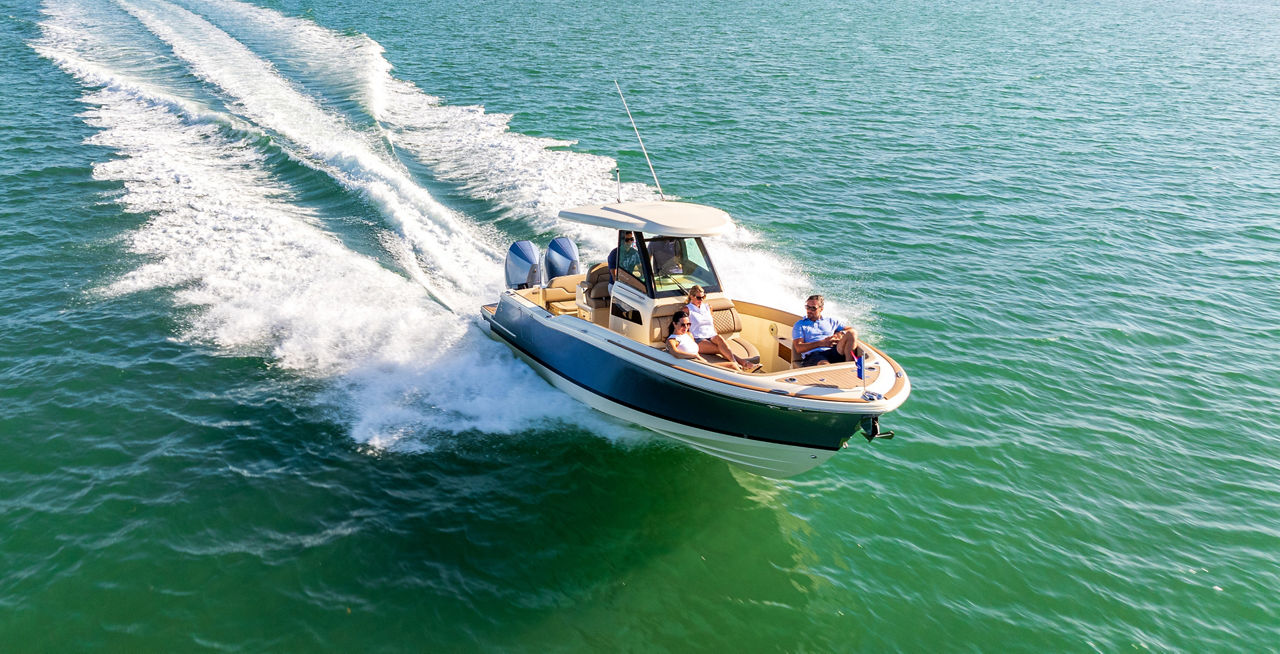

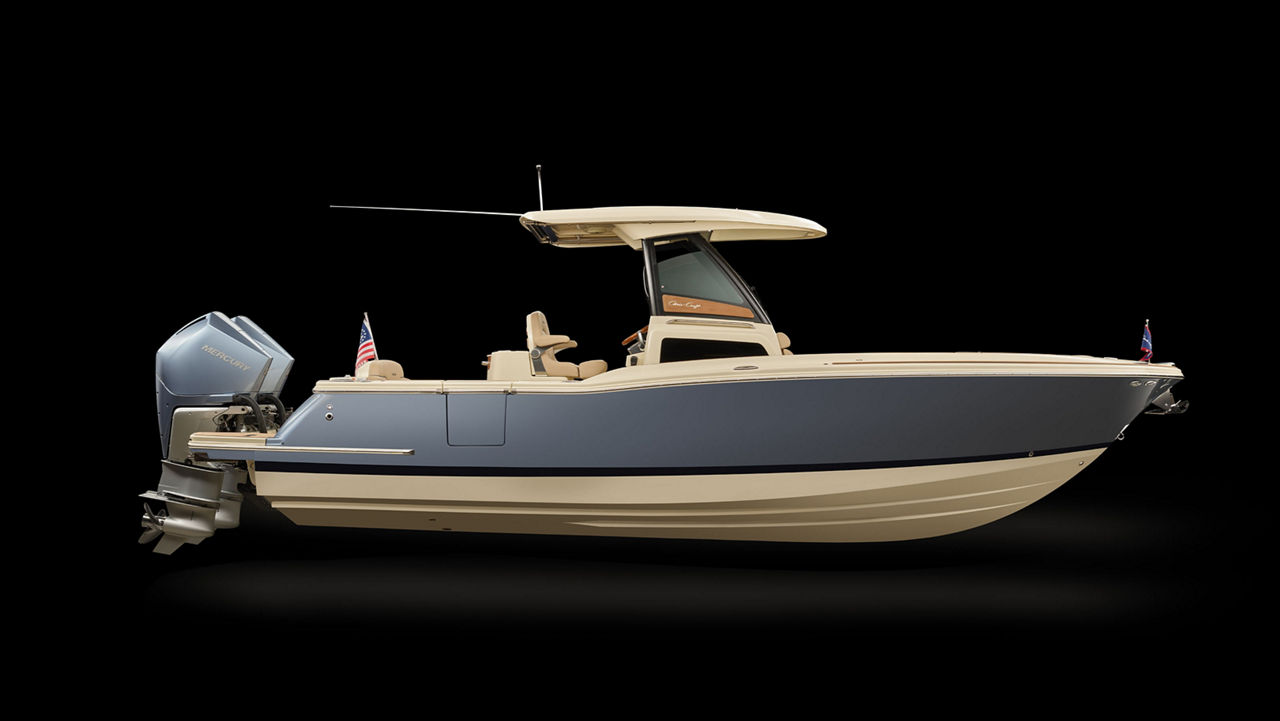

The stylish silhouette of the Catalina 28

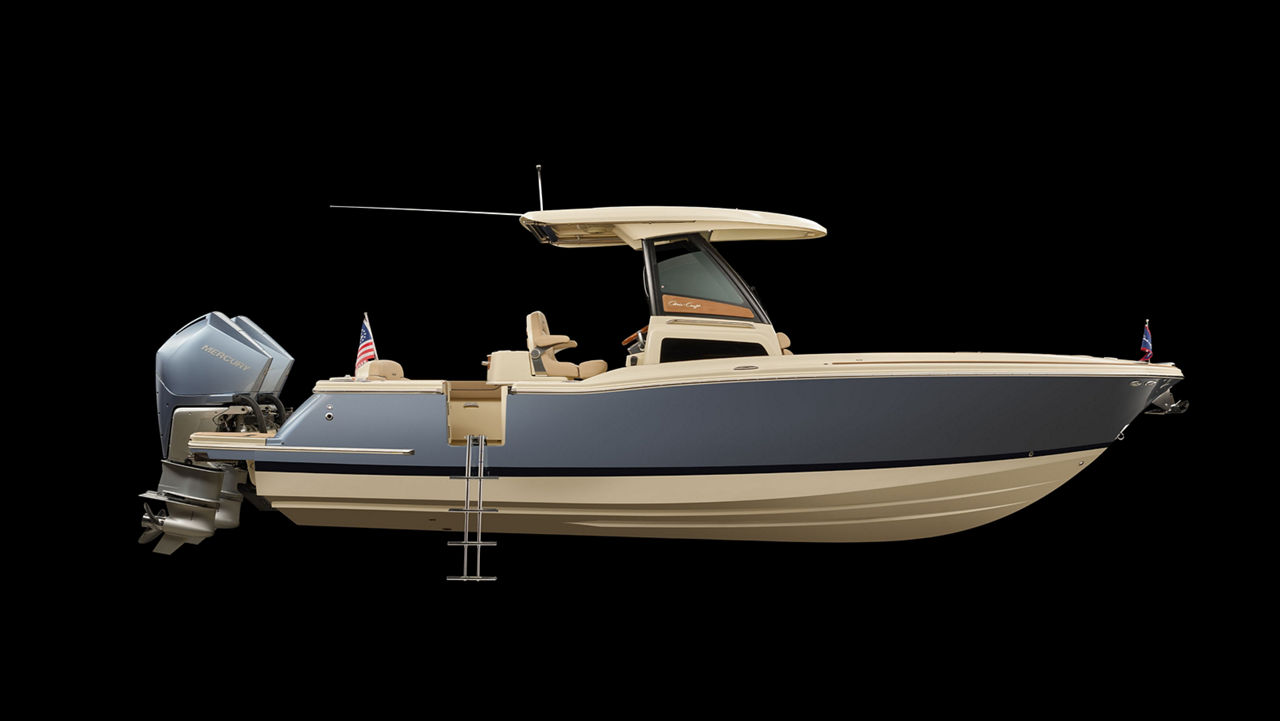

Cockpit side-boarding door with ladder

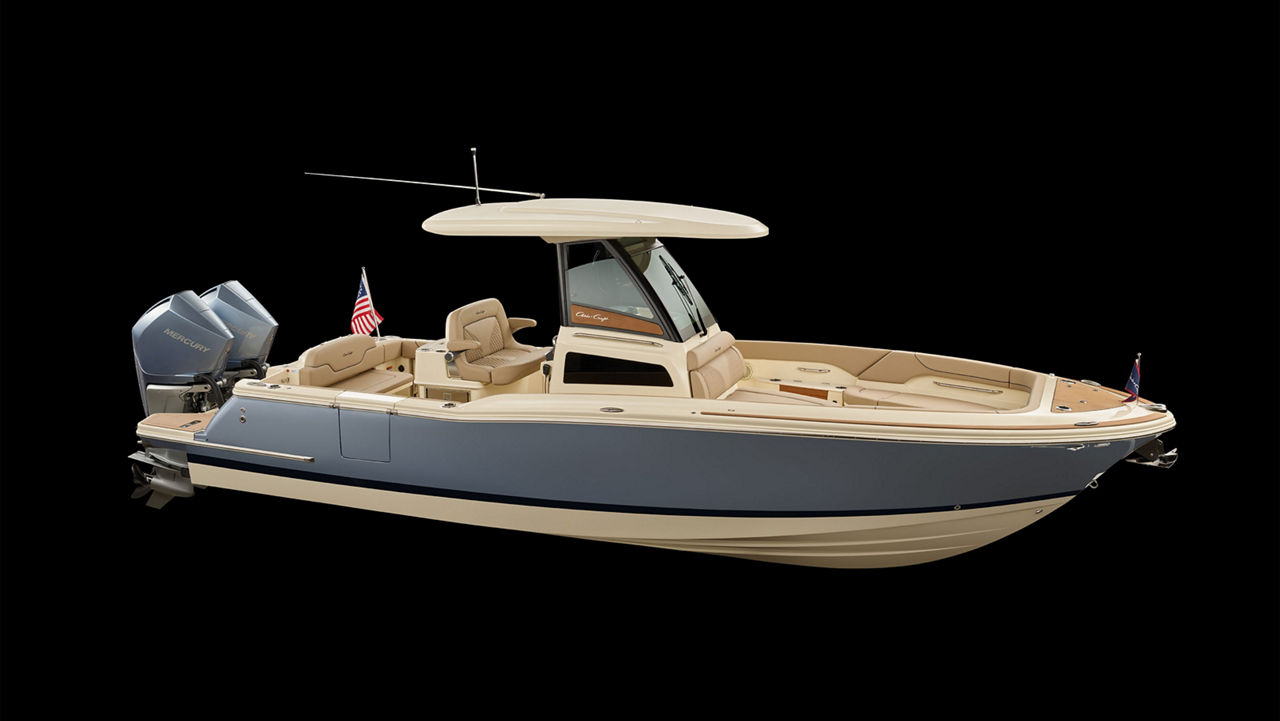

Hardtop shade protection

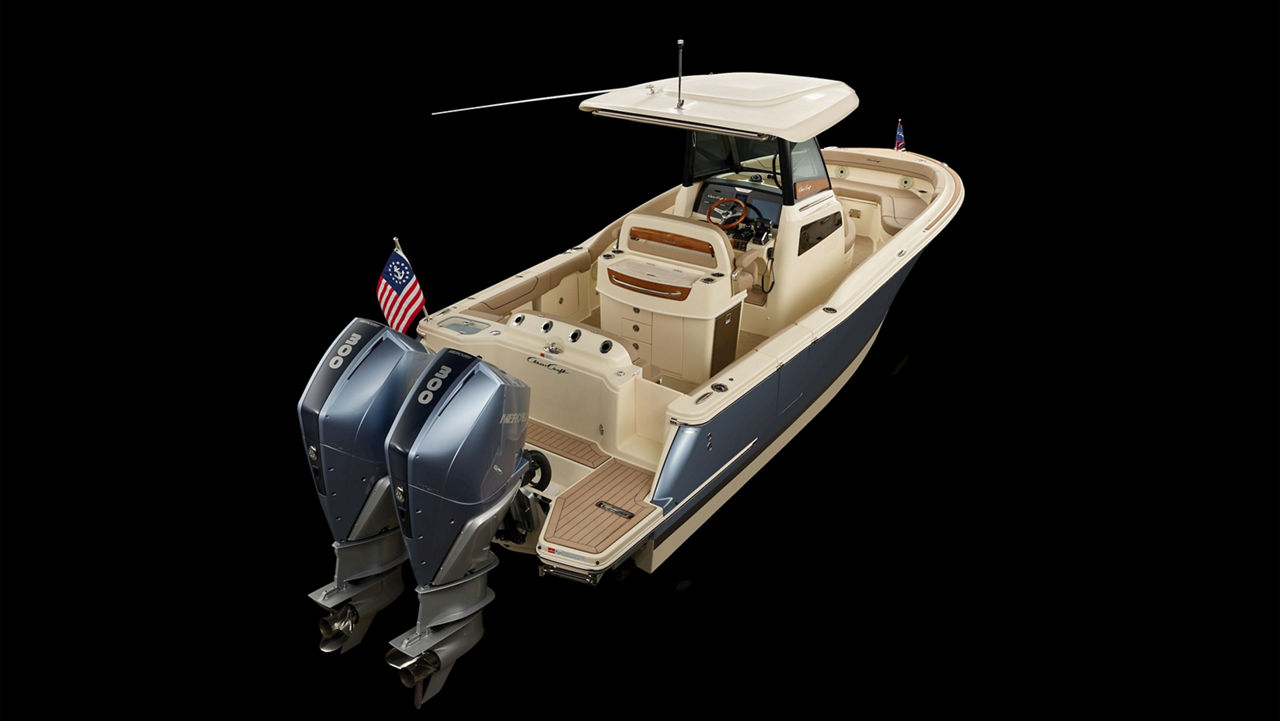

Wrap-around rear swim platform

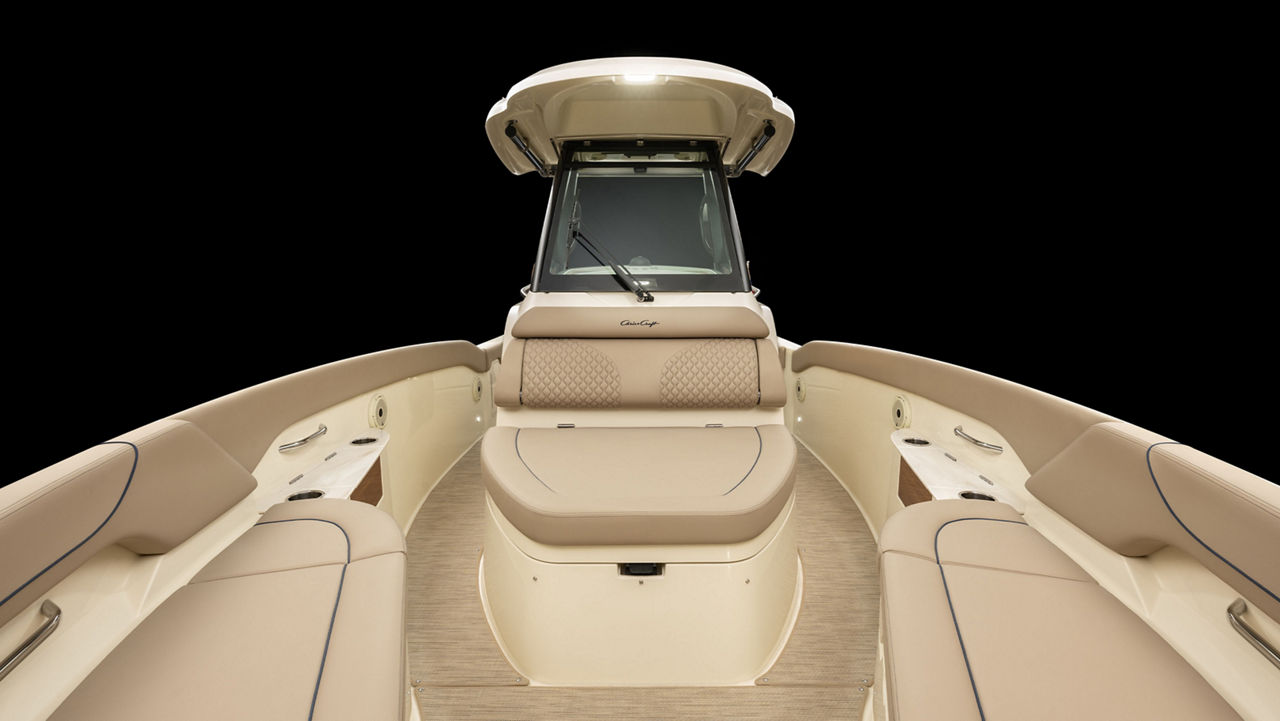

Forward lounger with armrests

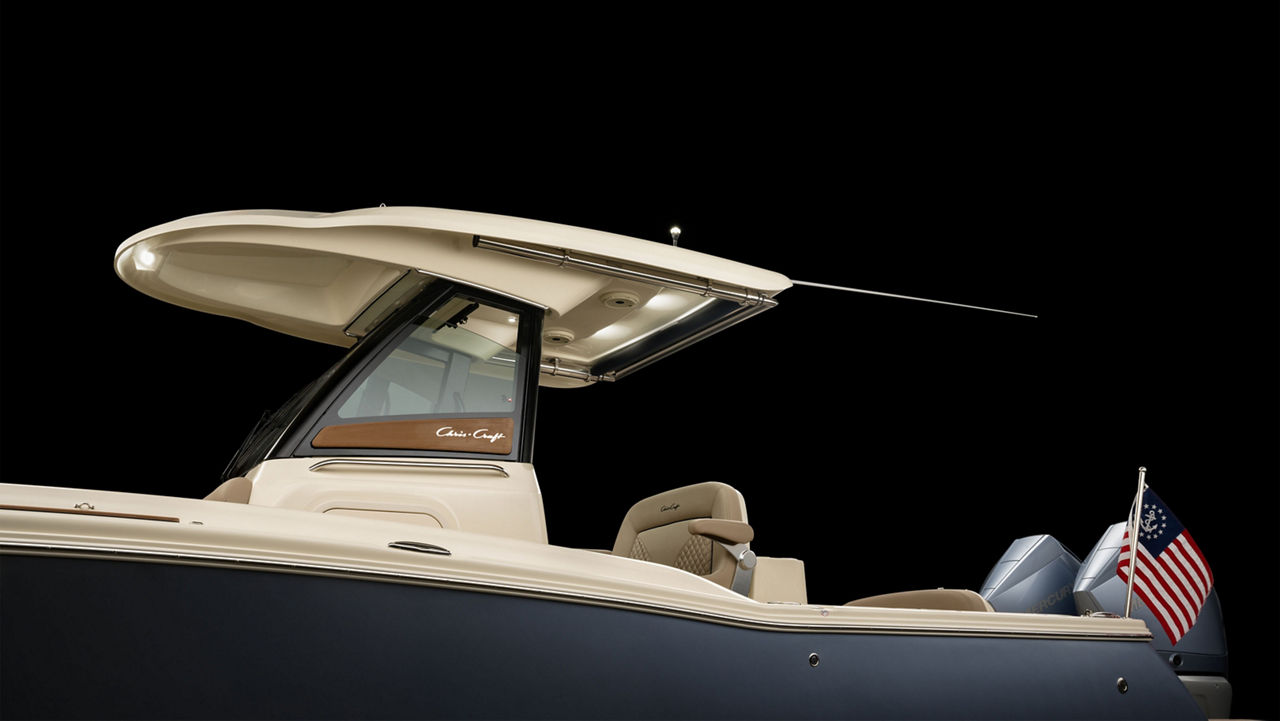

Power-actuated aft sun shade (stowed)

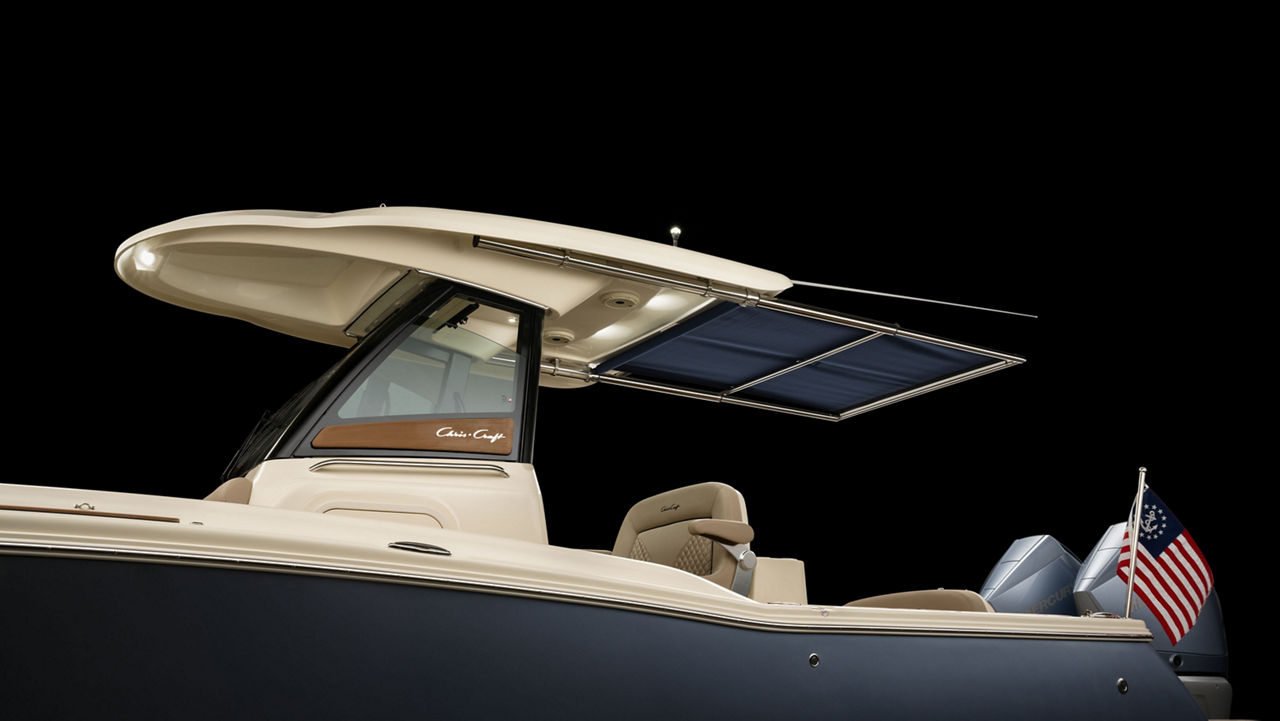

Power-actuated aft sun shade (extended)

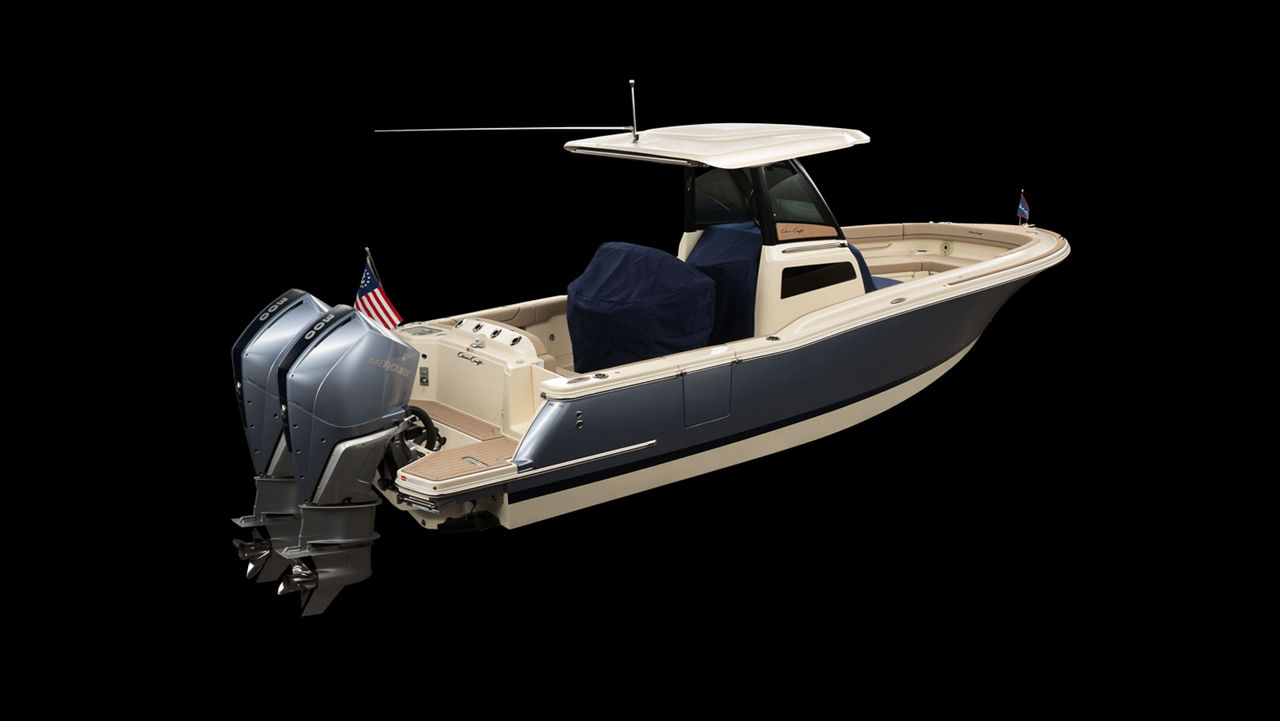

Protective canvas covers

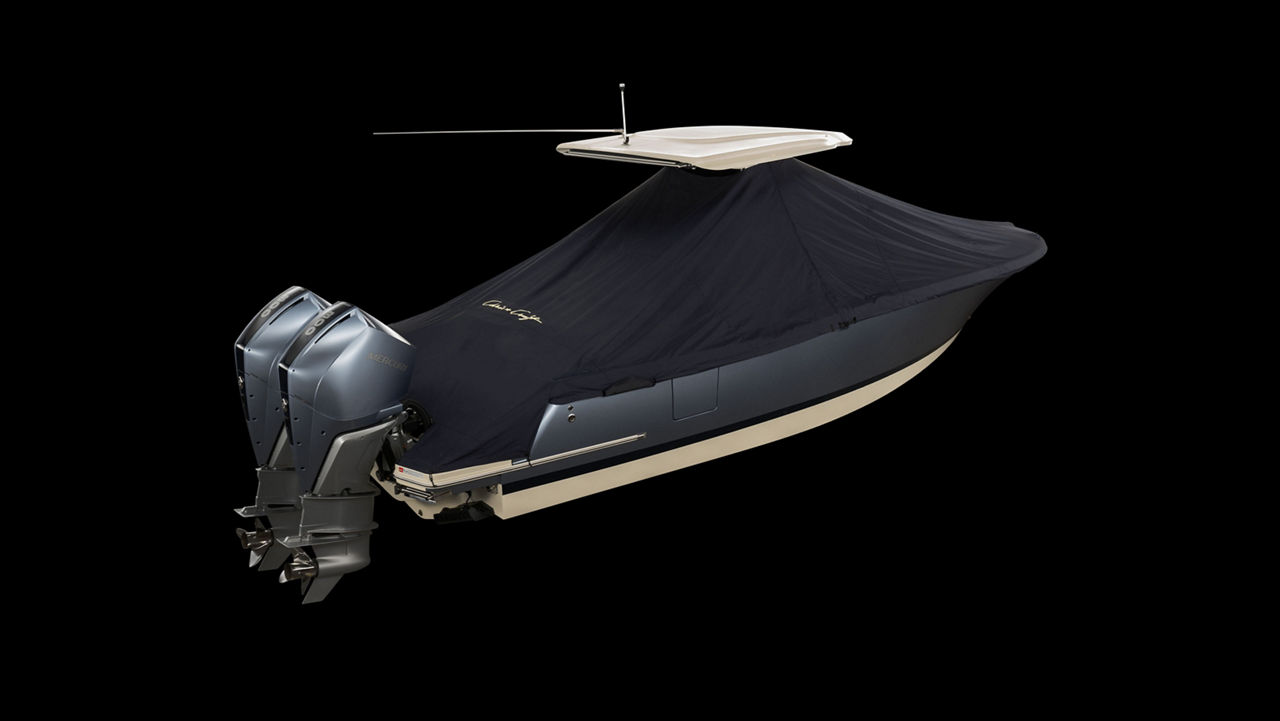

Mooring cover

EXPLORE THE INTERIOR

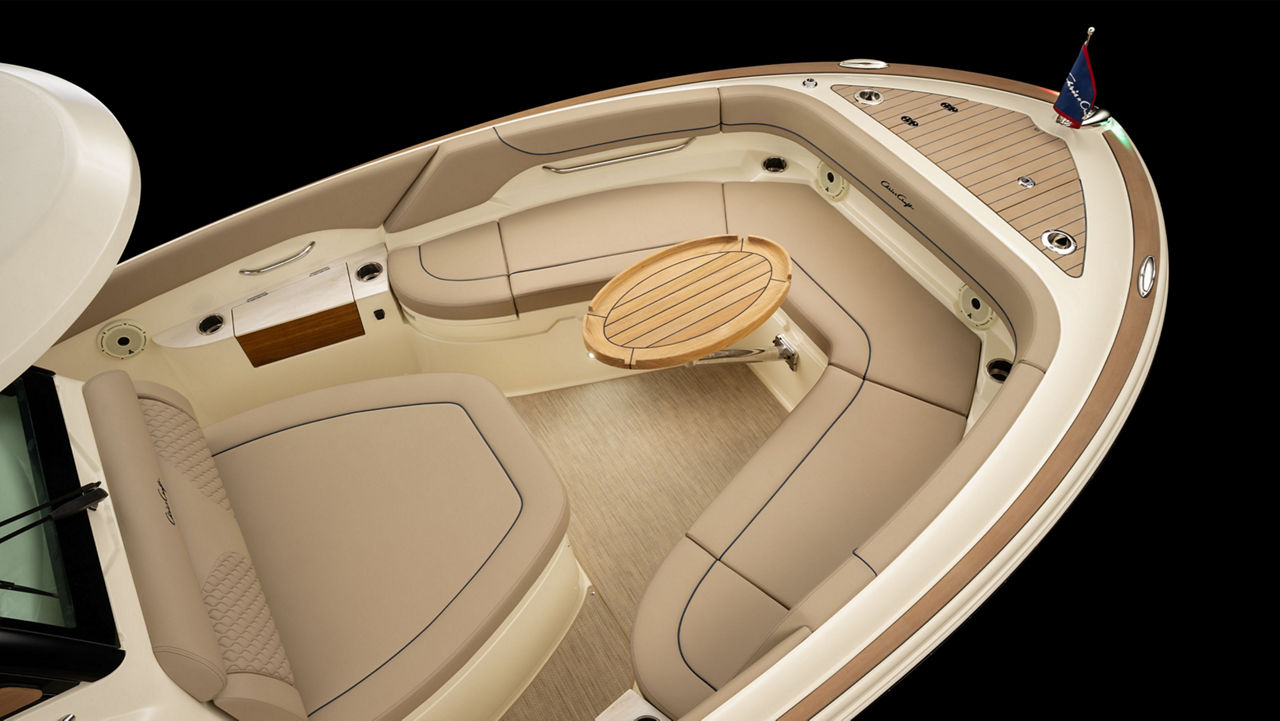

Spacious bow with teak table

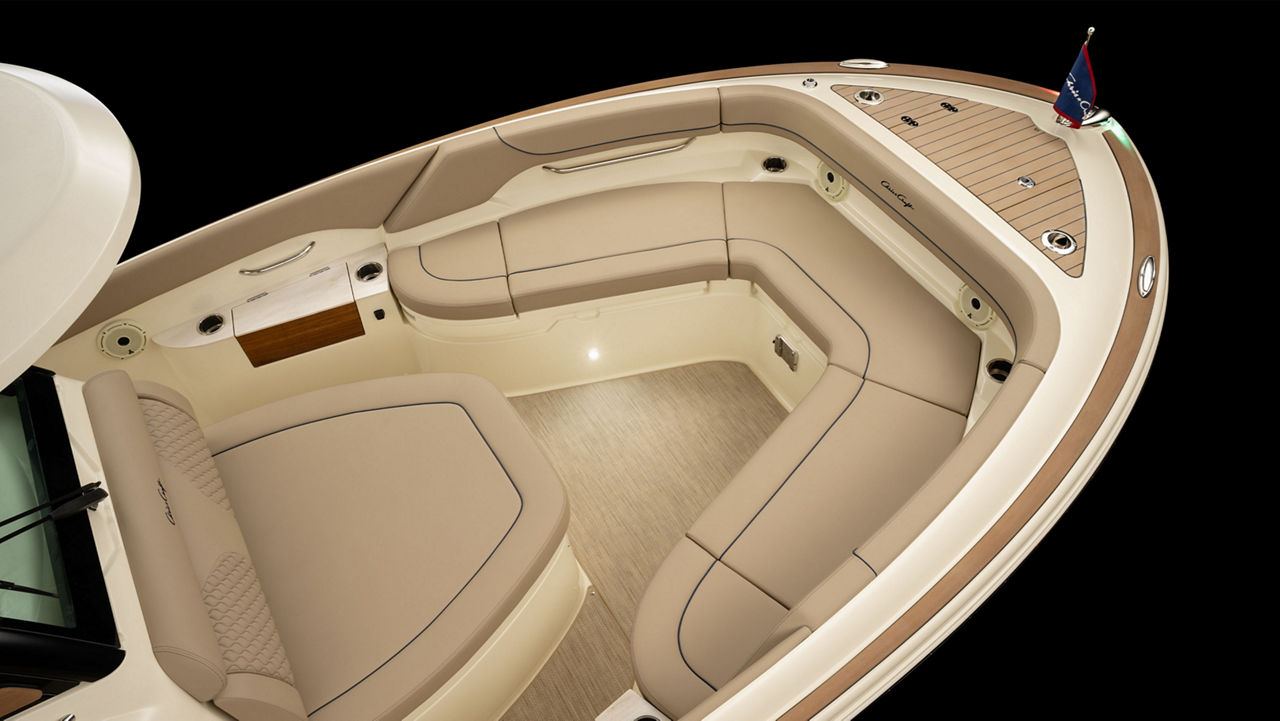

Spacious bow for entertaining

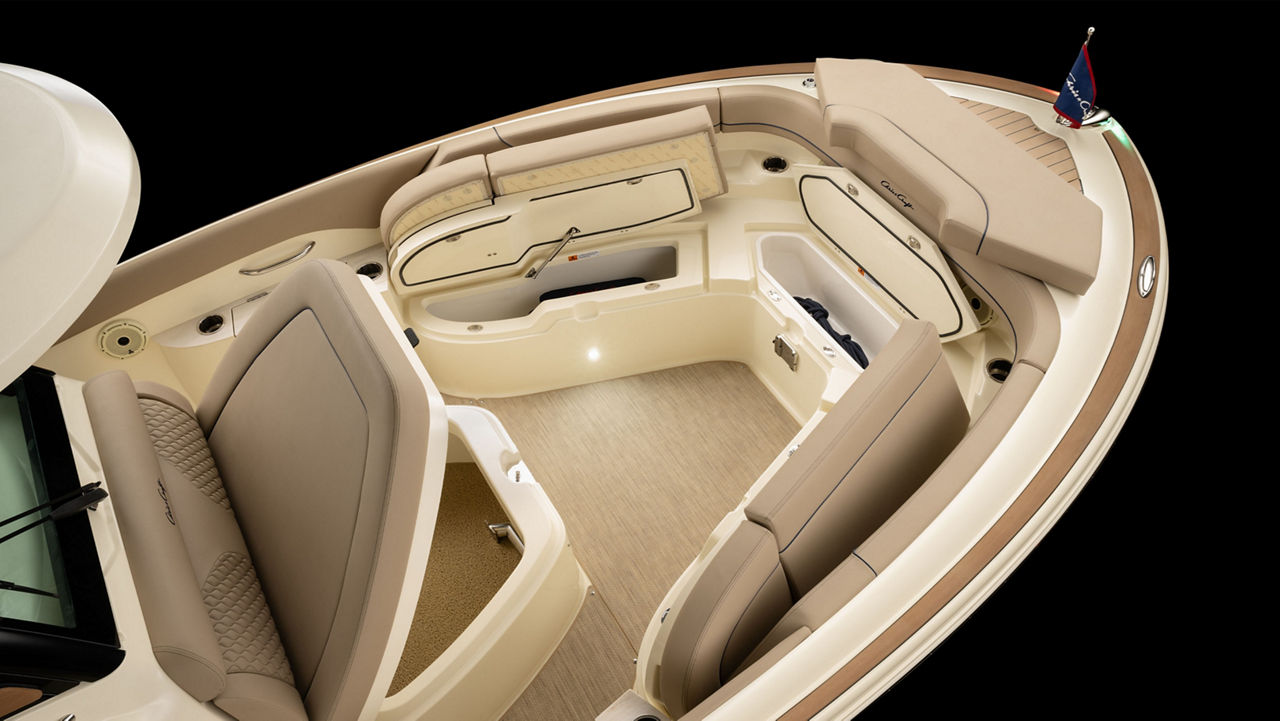

Spacious bow storage

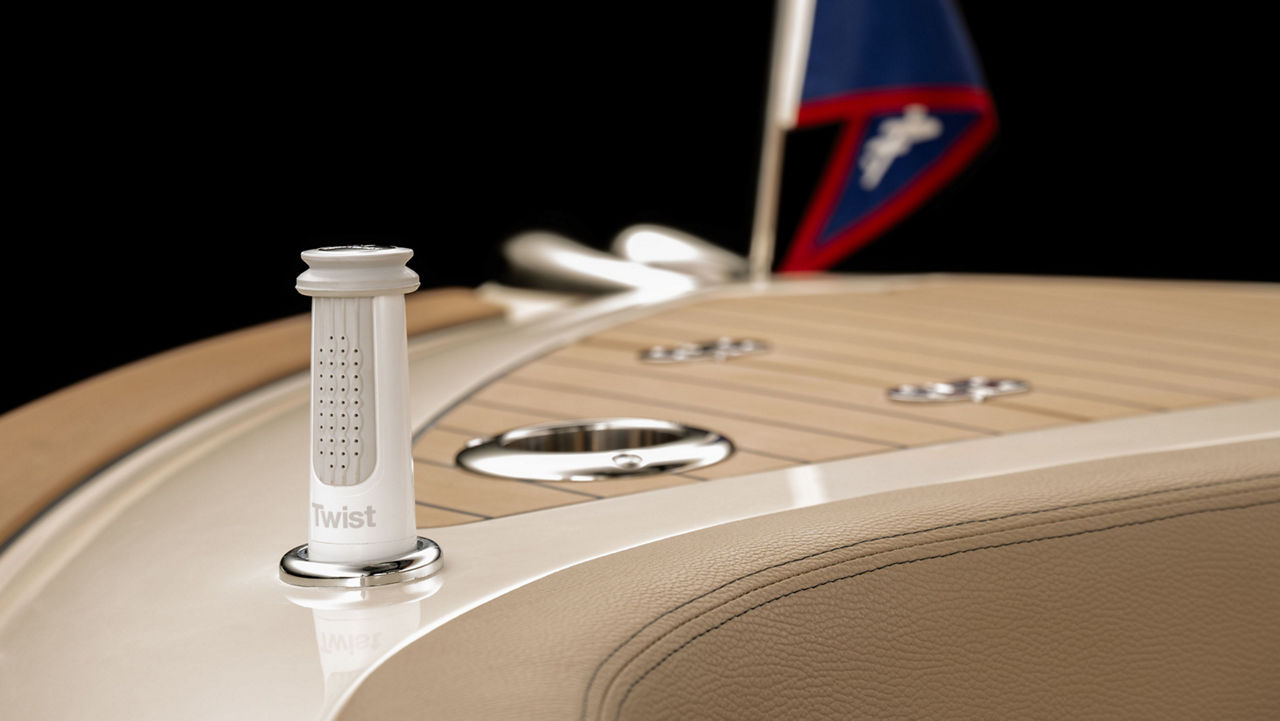

Bow pop-up freshwater sprayer

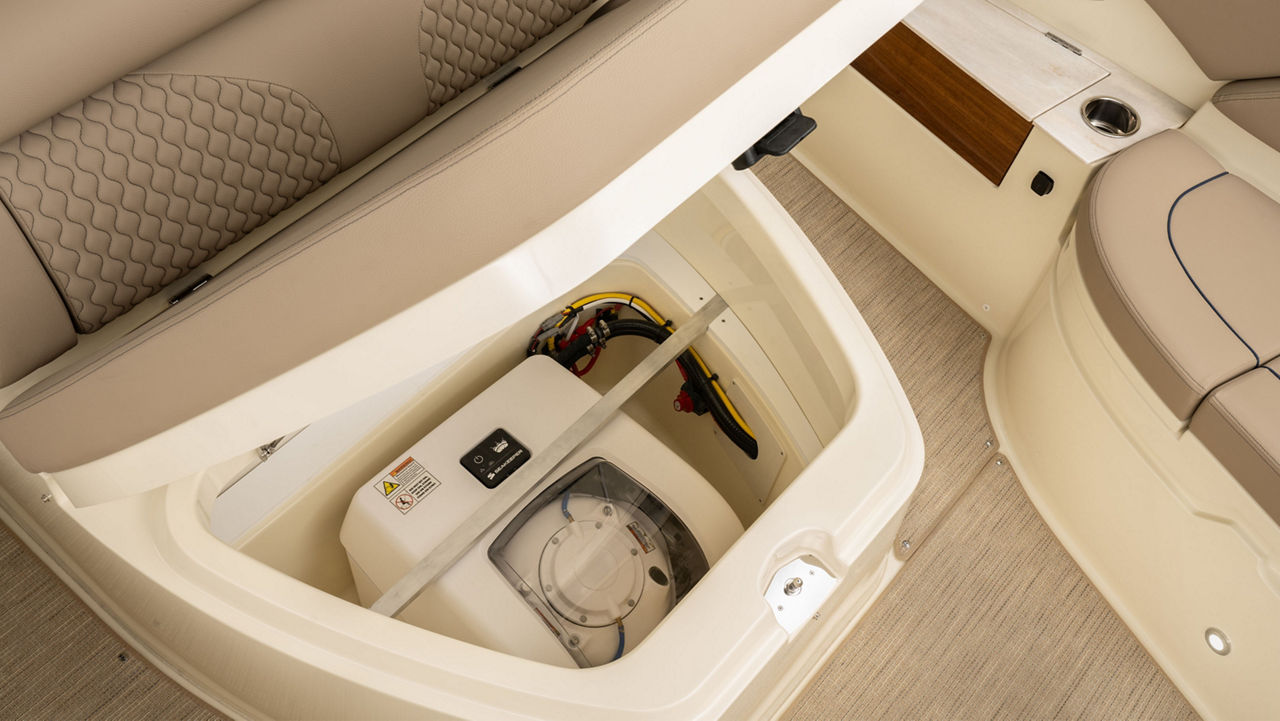

Seakeeper 1 Gyro Stabilizer

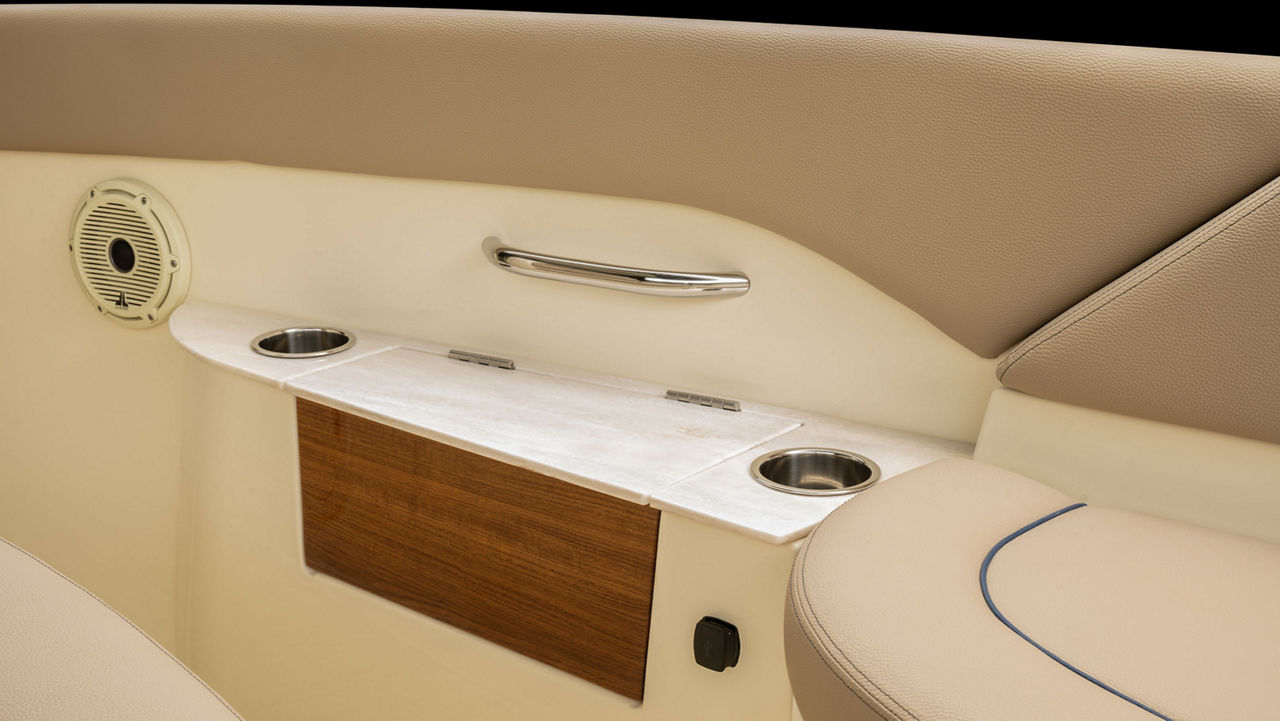

Corian® surface and cupholders

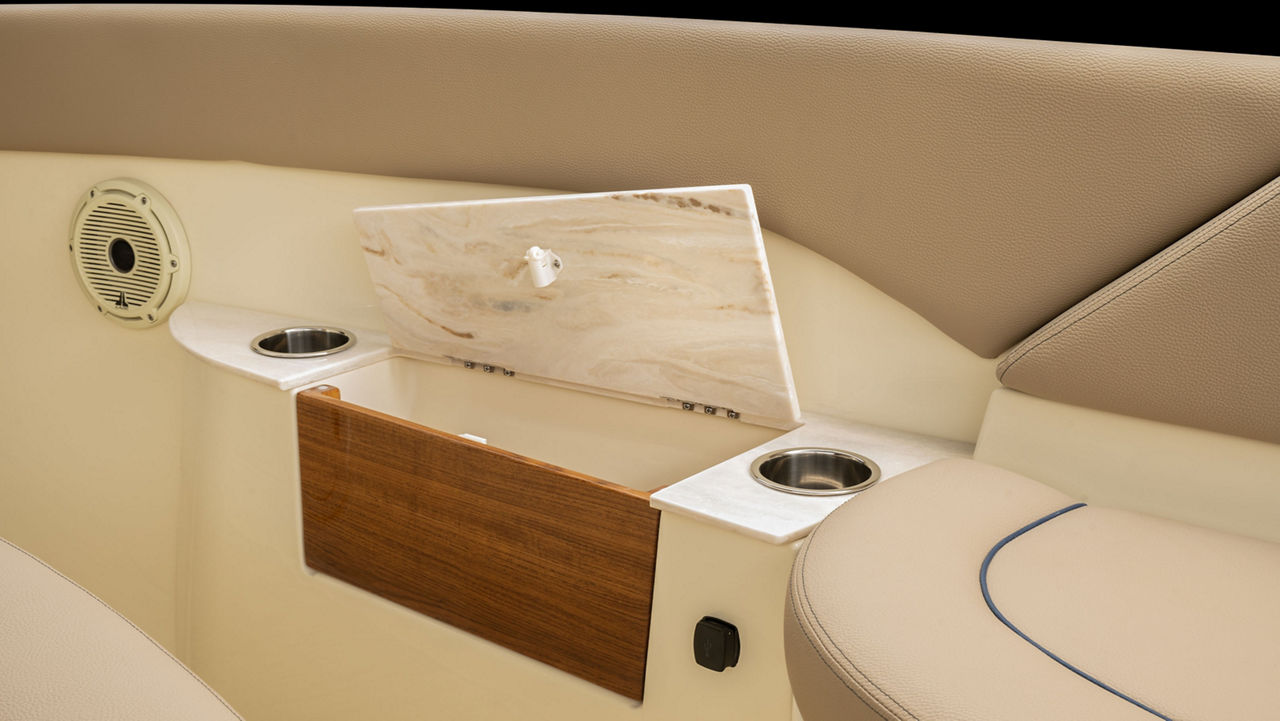

Corian® surface with storage

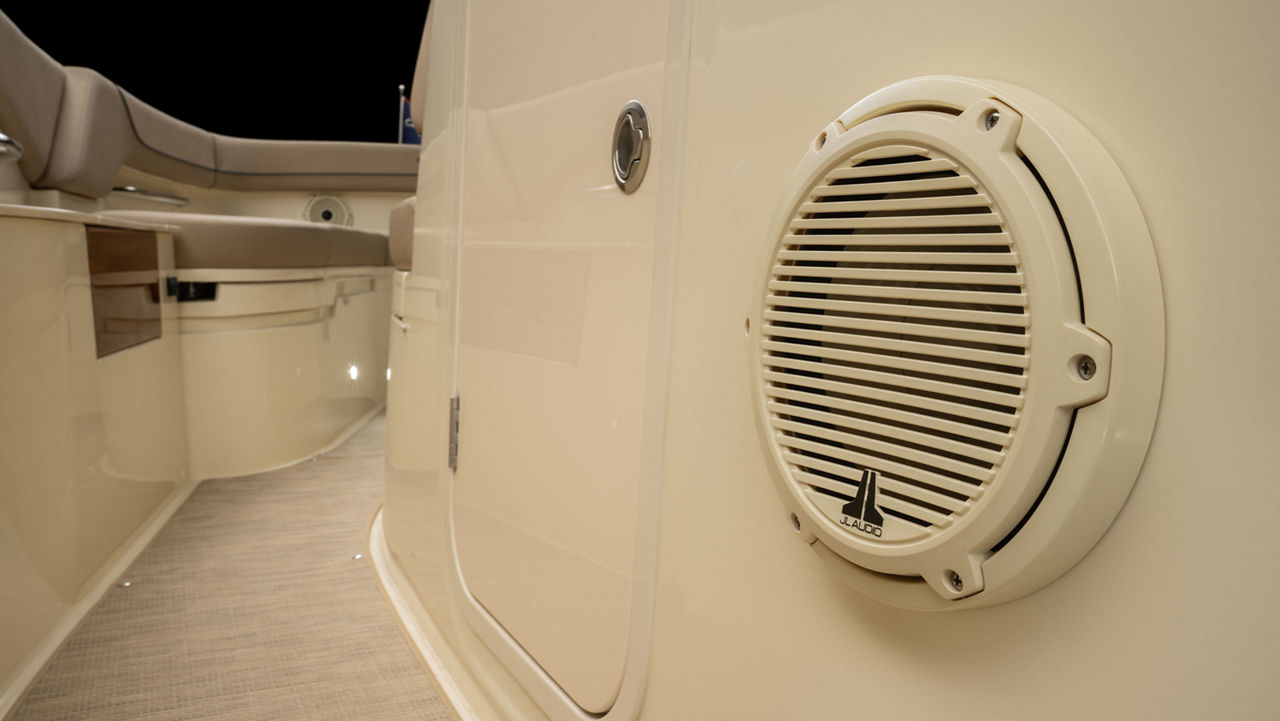

Quality components from JL Audio

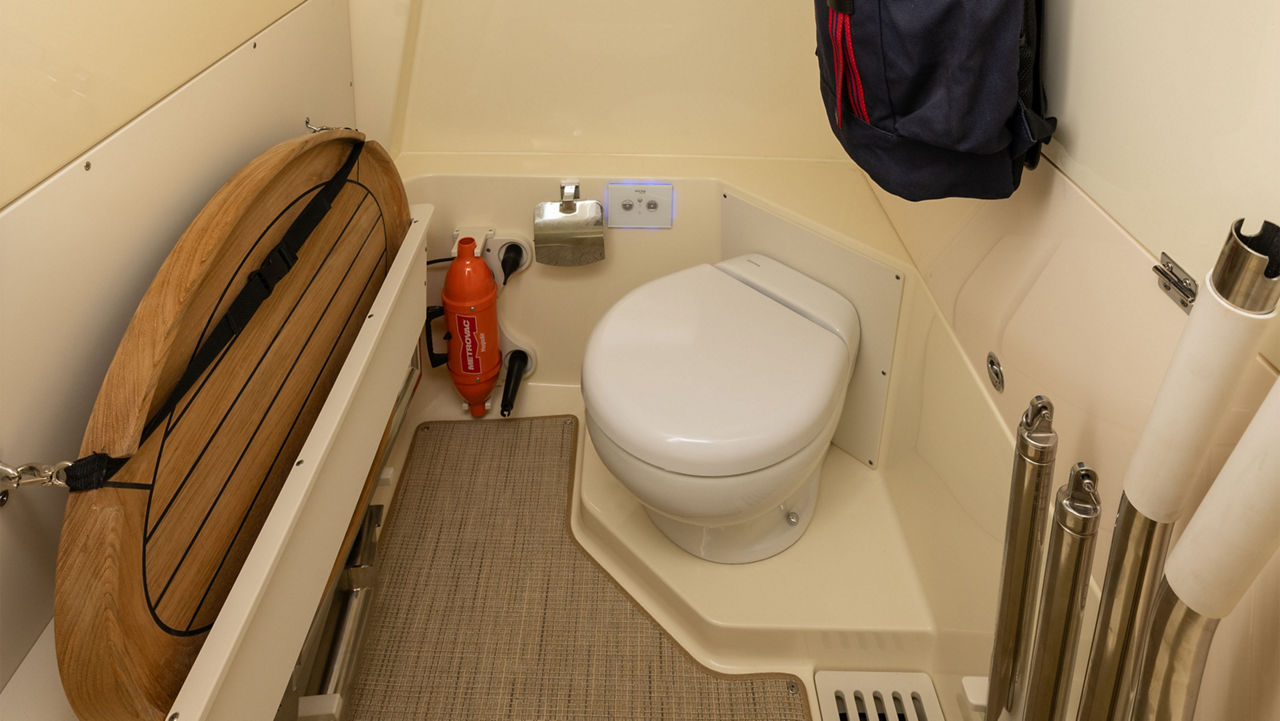

Spacious head with storage

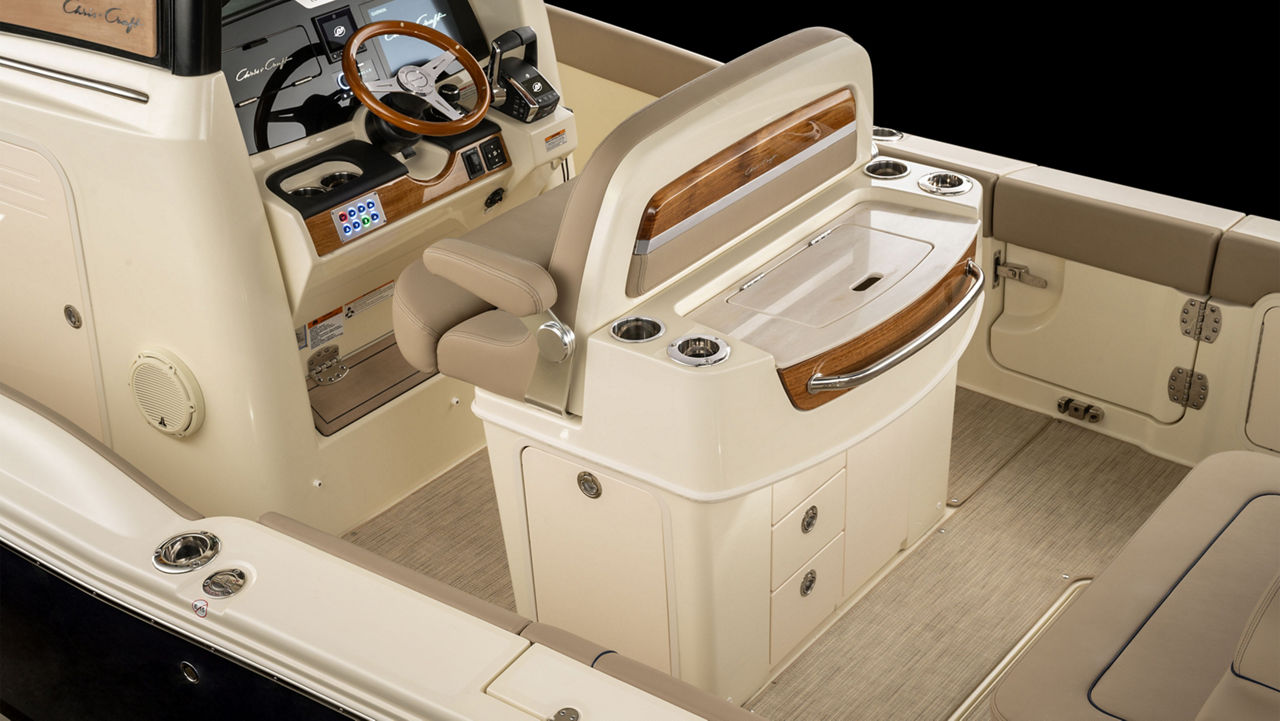

Cockpit galley with sink and drawer storage (closed)

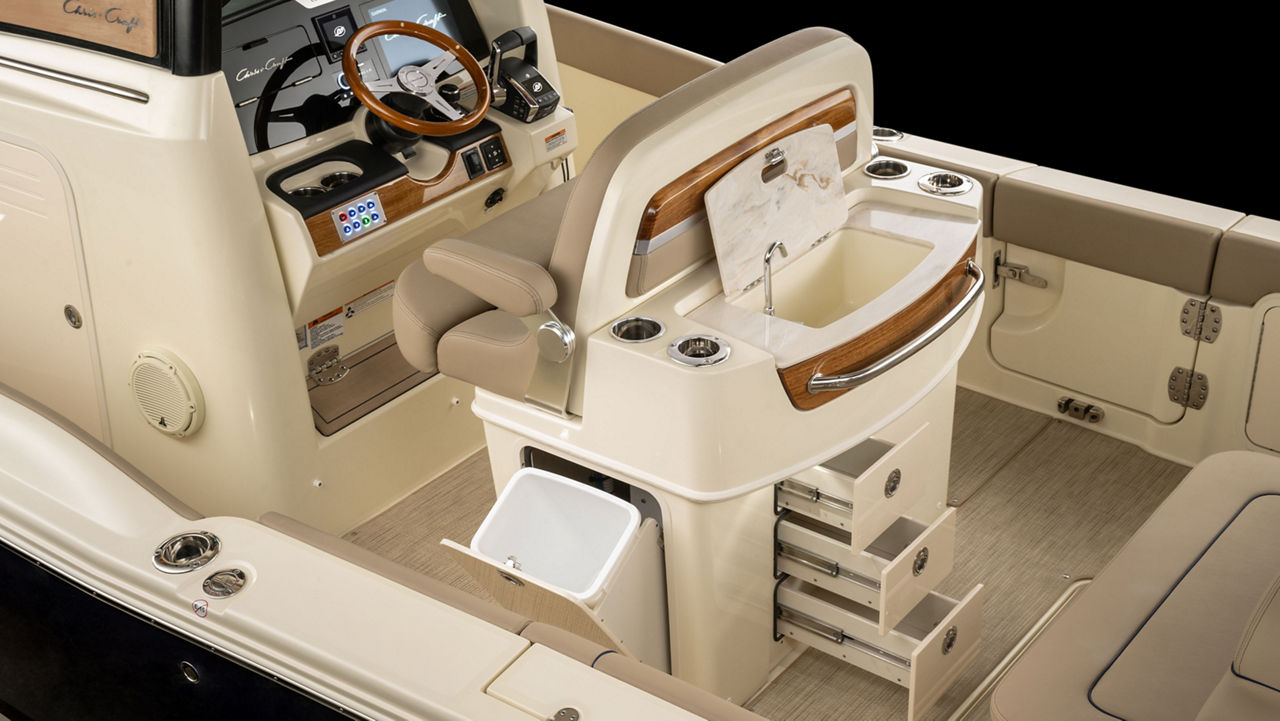

Cockpit galley with sink and drawer storage (open)

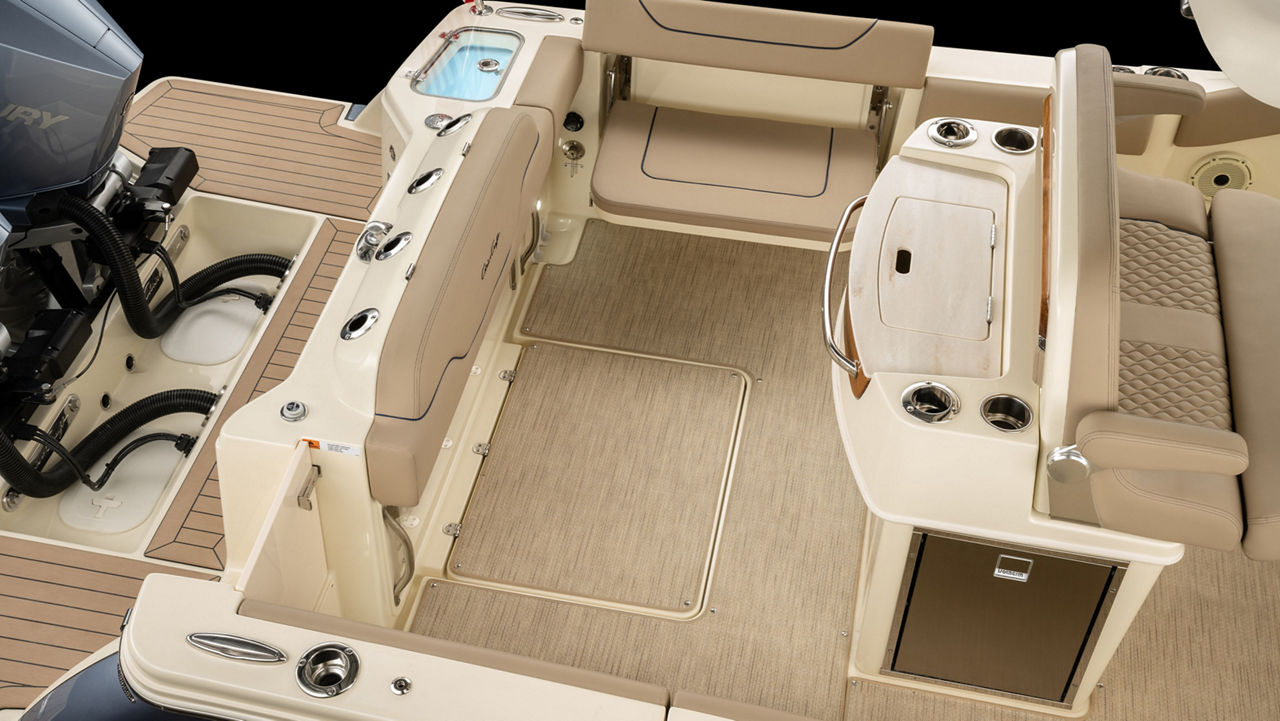

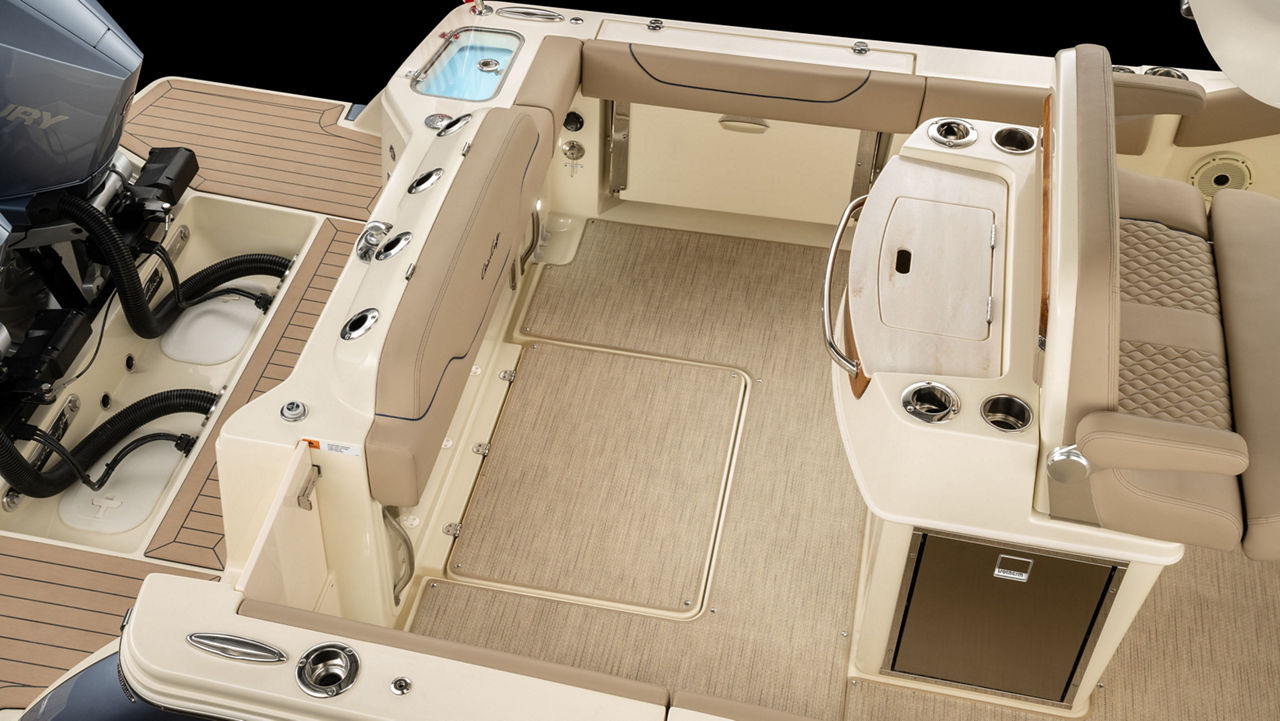

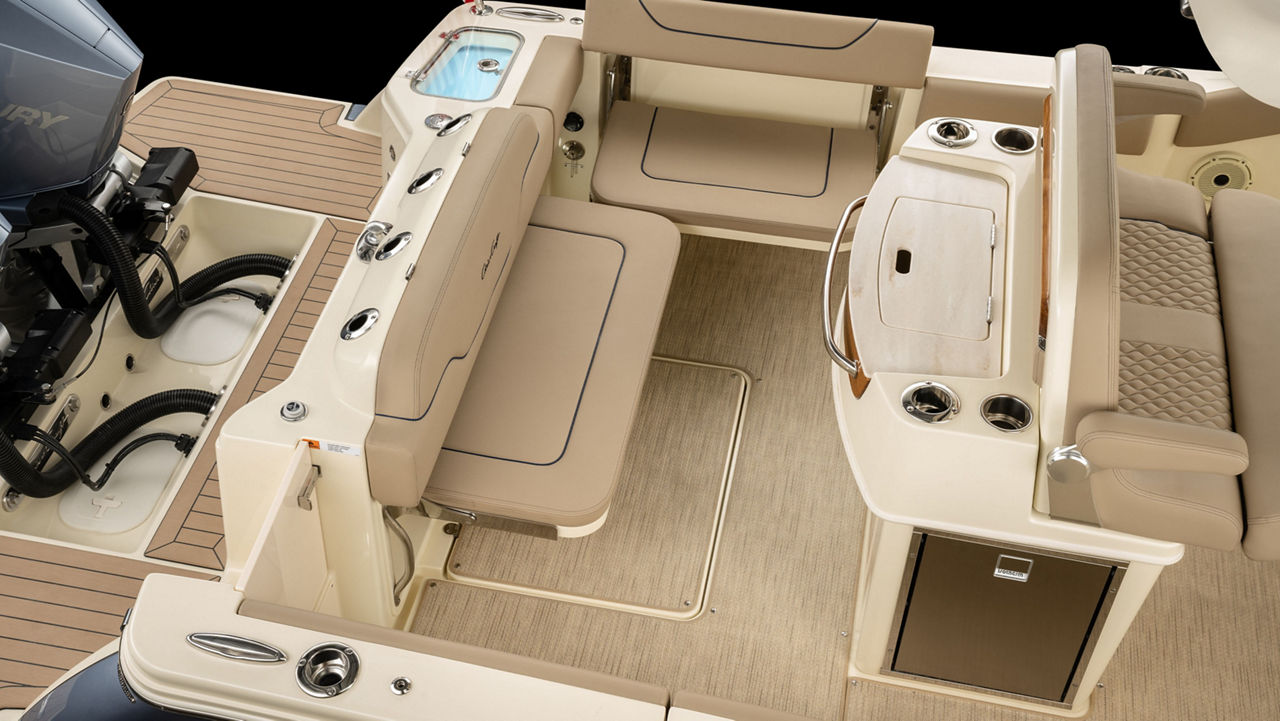

Configurable, fold-away aft seating

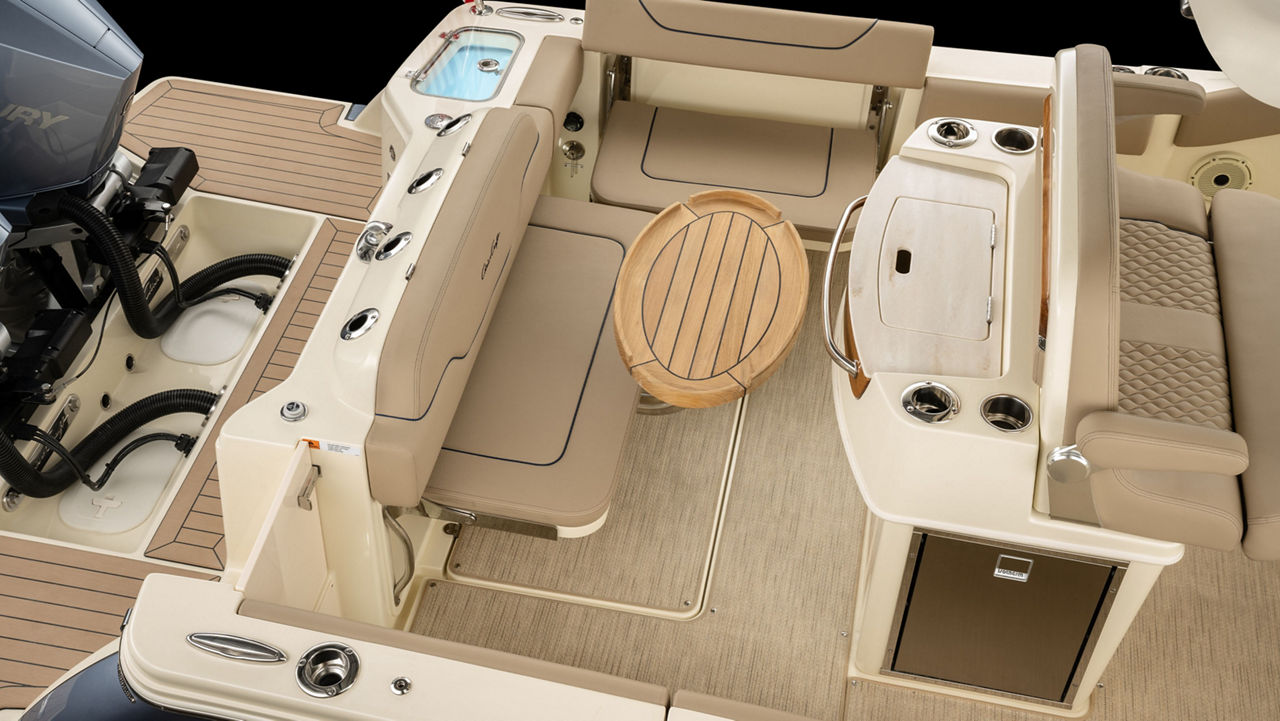

Configurable, fold-away aft seating with teak table

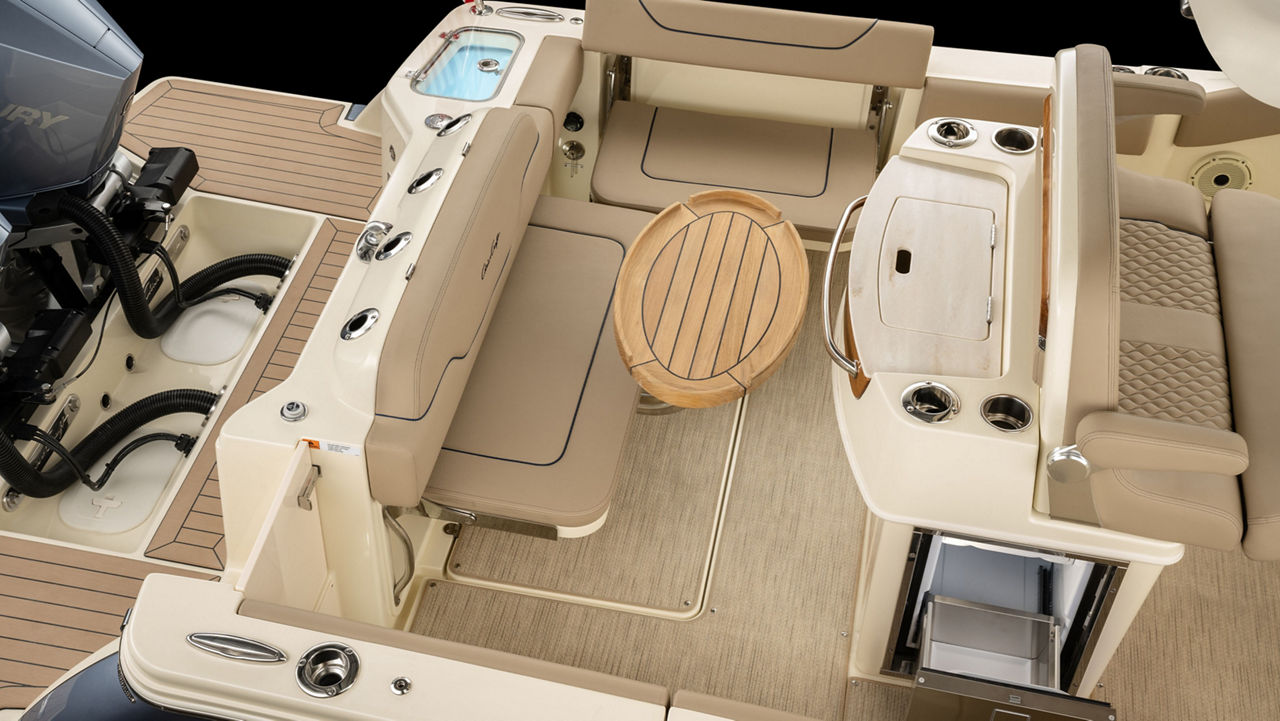

Cockpit galley refrigerator (open)

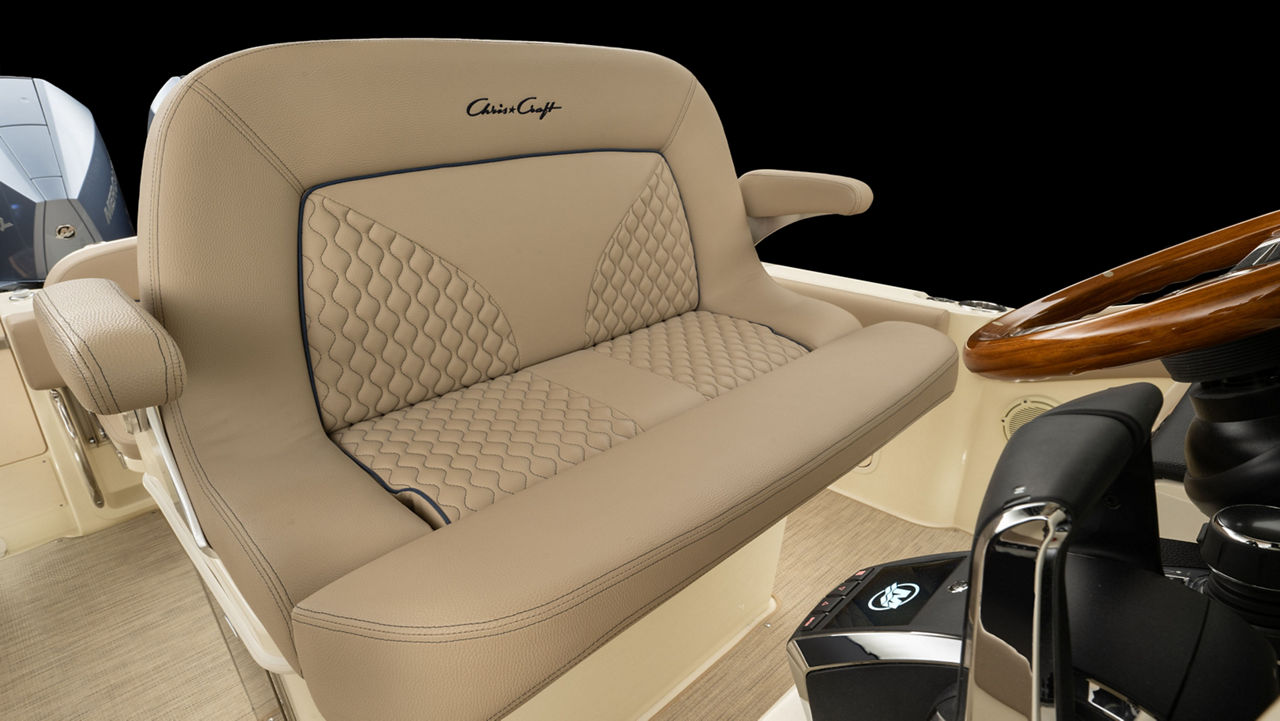

Double-wide helm seat with armrests

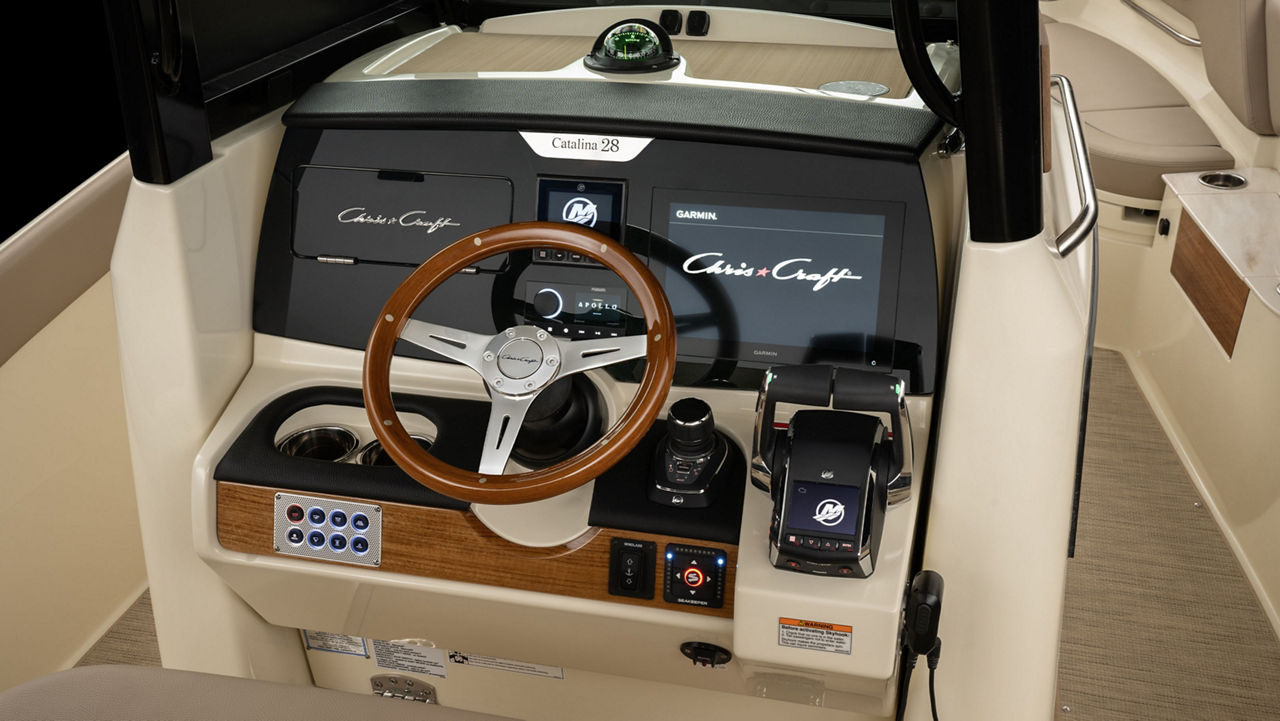

Flush-mounted Garmin® displays

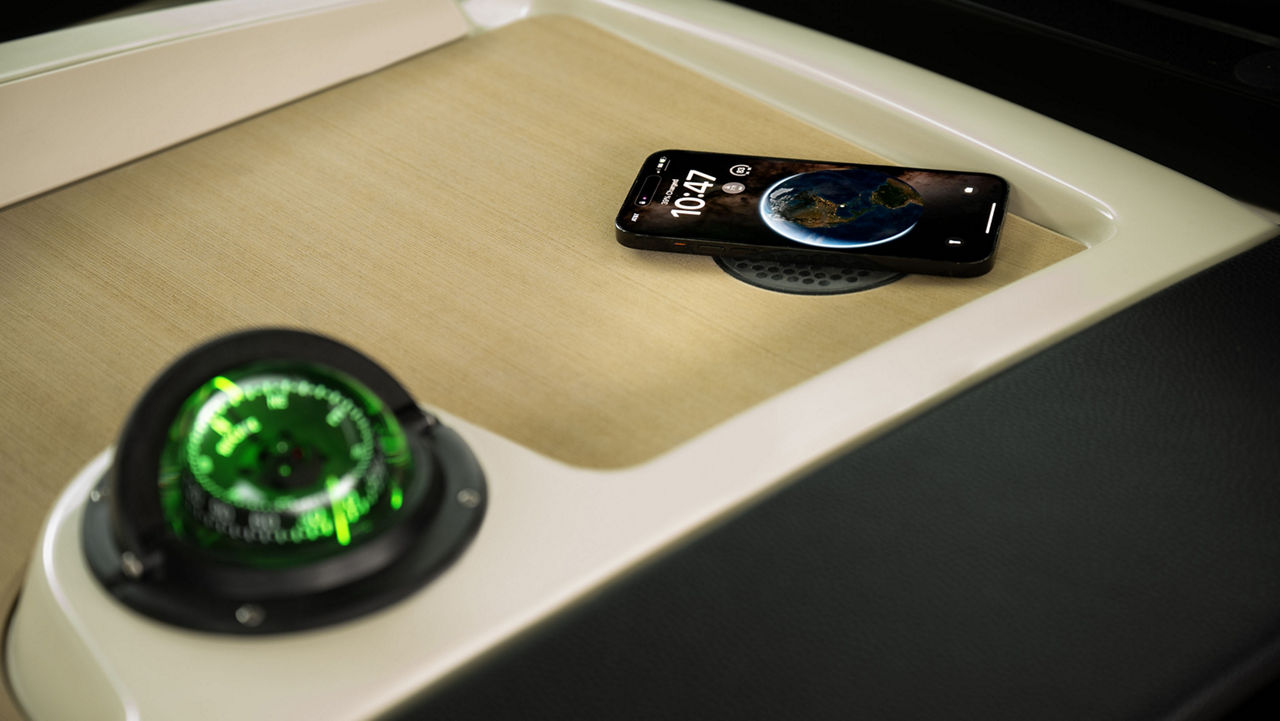

Inductive phone charging capability

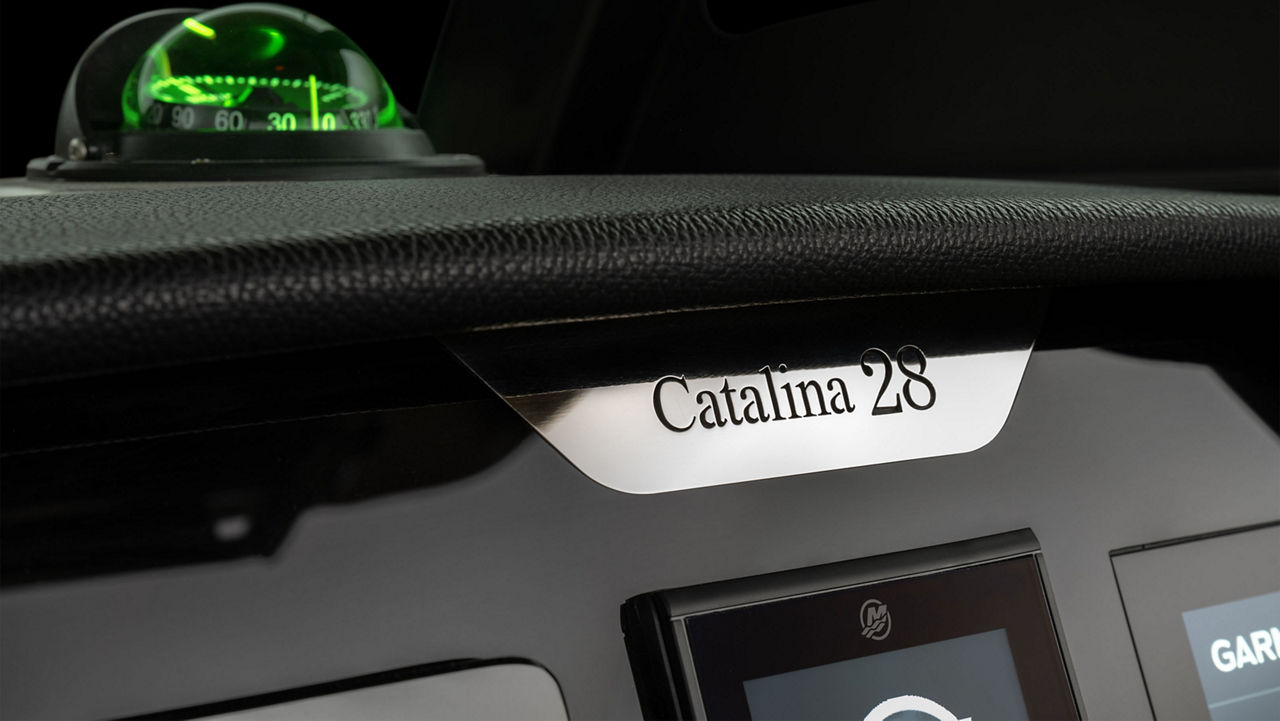

Highest-quality marine stainless steel

CATALINA 28 SPECIFICATIONS

DIMENSIONS

Length Overall with Engine	29'7"	9.0 m
Hull Length without Engine	27'11"	8.5 m
Length Waterline	23'2"	7.1 m
Maximum Beam	9'0"	2.7 m
Maximum Beam at Length Waterline	8'2"	2.5 m
Hull Draft: Engines Up	1'11"	0.58 m
Hull Draft: Engines Down	3'0"	0.91 m
Maximum Height	12'10"	3.9 m
Height: Waterline to Hardtop	7'7"	2.3 m
Dry Weight with Twin Engines (2x 300 Mercury)	8,680 lbs	3,937 kg
Freeboard at Midship	3'9"	1.1 m
Dead Rise	19°	19°
Transom Angle	12°	12°
Fuel Capacity	160 gal	606 L
Fresh Water Capacity	13 gal	49 L
Waste Holding Tank Capacity	13 gal	49 L
Persons Capacity	Yacht Certified	Yacht Certified
Loaded Displacement	10,445 lbs	4,738 kg
Maximum Engine Horsepower	600 HP	600 HP
Maximum Engine Weight (2x 300 Mercury)	1,270 lbs	576 kg

EDITION SELECTION

Standard Edition – Synthetic Teak Bow Anchor Locker, Covering Boards, Helm Footrest, and Swim Platform

Heritage Trim Edition – Teak Bow Anchor Locker, Covering Boards, Helm Footrest, and Swim Platform

Heritage Edition – Full Teak Floor, Bow Anchor Locker, Covering Boards, Helm Footrest, and Swim Platform

TOP SELECTION

Pilothouse

TOP OPTIONS

Aft Shade – Power Actuated

Rod Holders – Hardtop Mounted

ENGINE TYPE

Twin Mercury Verado®	225 HP x2	4-Stroke – Digital Throttle and Shift – Joystick Piloting and Electric Steering
Twin Mercury Verado	300 HP x2	4-Stroke – Digital Throttle and Shift – Joystick Piloting and Electric Steering

ENGINE OPTIONS

Active Trim

Custom Color-Painted Outboards (Twin 300 Only)

Custom-Painted Engine Accent Panels

Engine Freshwater Flush Kit

Ivory Cream-Painted Outboards (Twin 300 Only)

SEAT CONFIGURATION

Helm Seat – Convertible Bench with Slide-Out YETI® Cooler

Helm Seat with Cockpit Galley Base – Double-Wide Helm Seat with Armrests, Molded Fiberglass Base, Refrigerator, Trash Receptacle, and Drawer Storage

ADDITIONAL OPTIONS

Air Compressor - 12V with Storage Rack

Bow Docking Lights - LED

Bow Thruster

CE Certification

Cover - Mooring

Cover - Twin Outboards

Fender Clips (4)

Flooring - Woven Seagrass (n/a with Heritage Edition)

Garmin 1243xsv Dual 12" Multifunction Displays with Chartplotter, Depth Finder, Includes Engine Data & Stereo Integration

Garmin VHF Radio with Antenna

Gyro Stabilizer – Seakeeper SK 1 DC

Macerator with Overboard Discharge (Requires Tecma Head)

Mediterranean Storable Sun Shade – Bow

Ocean Shipping Cradle

Painted Underside of Pilothouse

Pillows - Weighted (4)

Premium Audio System (Upgraded Speakers, Subwoofer and DSP Amps)

Pumpout for Forward Floor Storage/Fish Box (n/a with Bow Thruster)

Raw Water Wash Down

SiriusXM® Satellite Radio - USA & CAN Only (No Subscription)

Ski Pylon (Pop-Up in Aft Coaming)

Teak Table with Forward and Aft Bases

Tecma Head System

Underwater Lights (2)

Water-Ready Twin Engines – Includes Batteries

Windlass with Stainless Steel Anchor and Approx. 200' Chain

Windlass with Stainless Steel Anchor and Approx. 200' Line

* Chris-Craft designs, standard features, optional equipment, and all specifications are subject to change without notice, to improve reliability, function, design, or for other reasons.
