LENGTH
26'10" / 8.2 m
BEAM
8'6" / 2.6 m
DRY WEIGHT
6,090 lbs / 2,762 kg
STARTING AT
$263,920*
CRAFTED TO ENTERTAIN

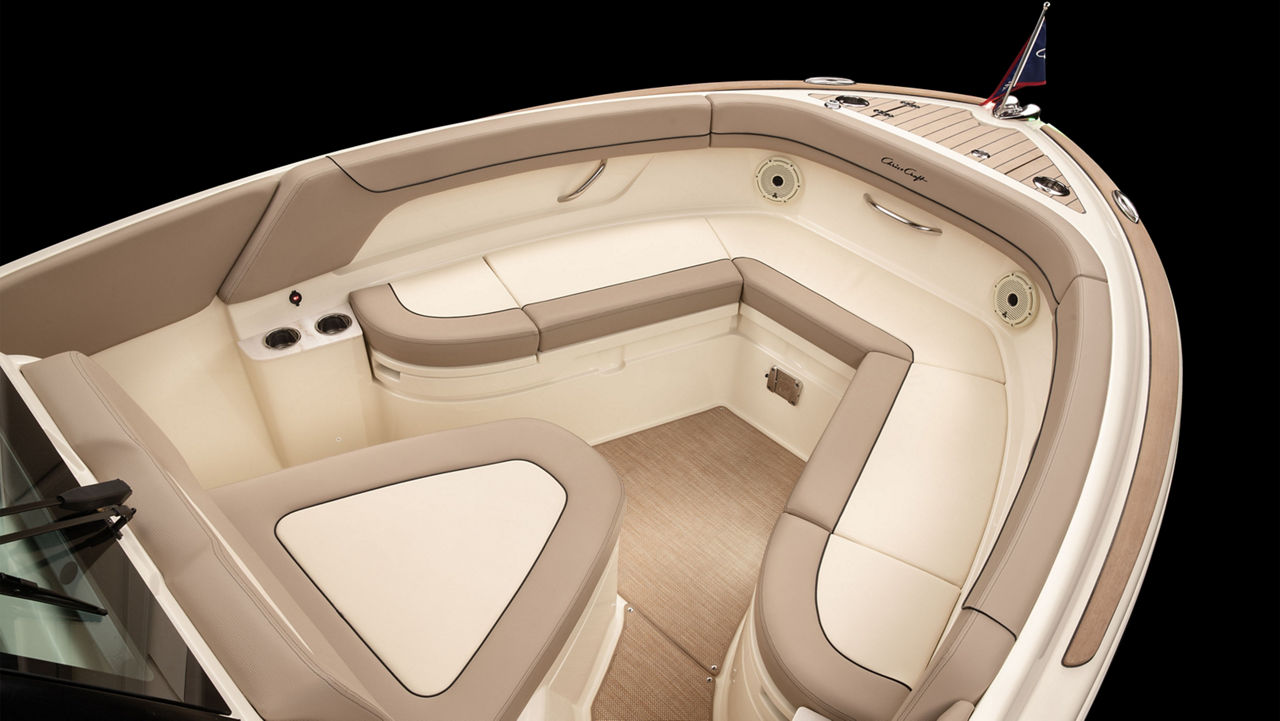

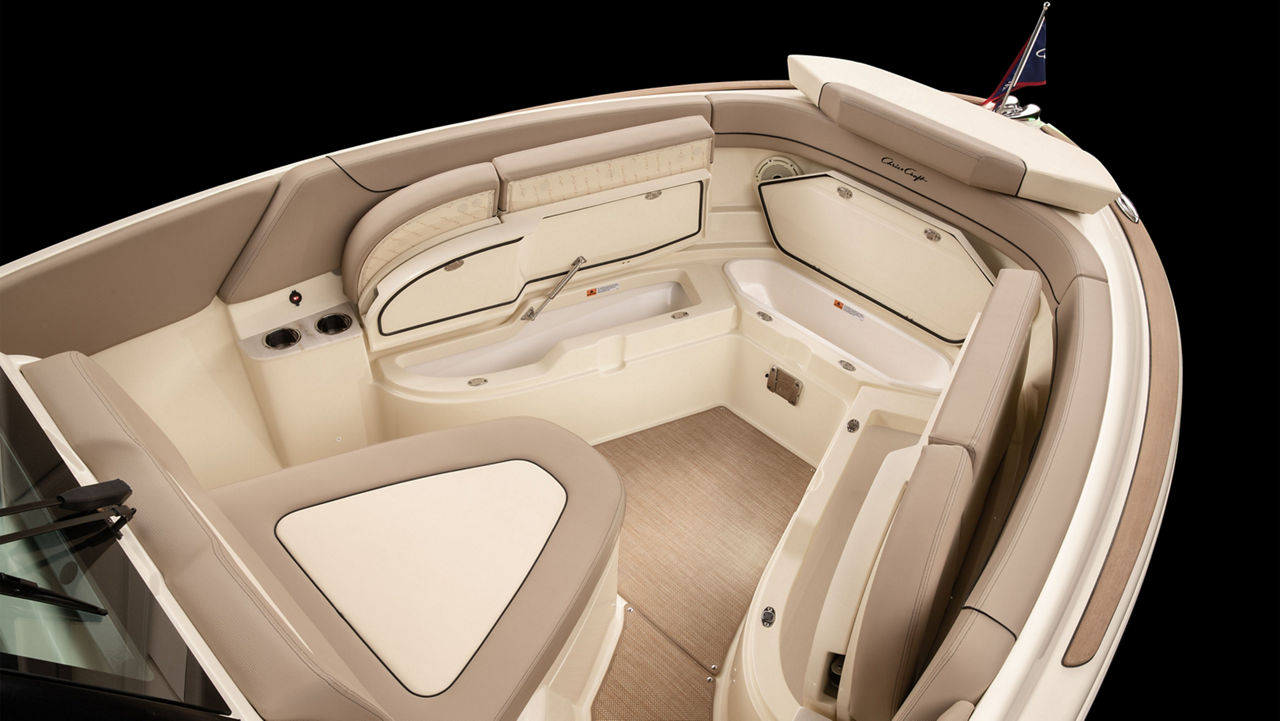

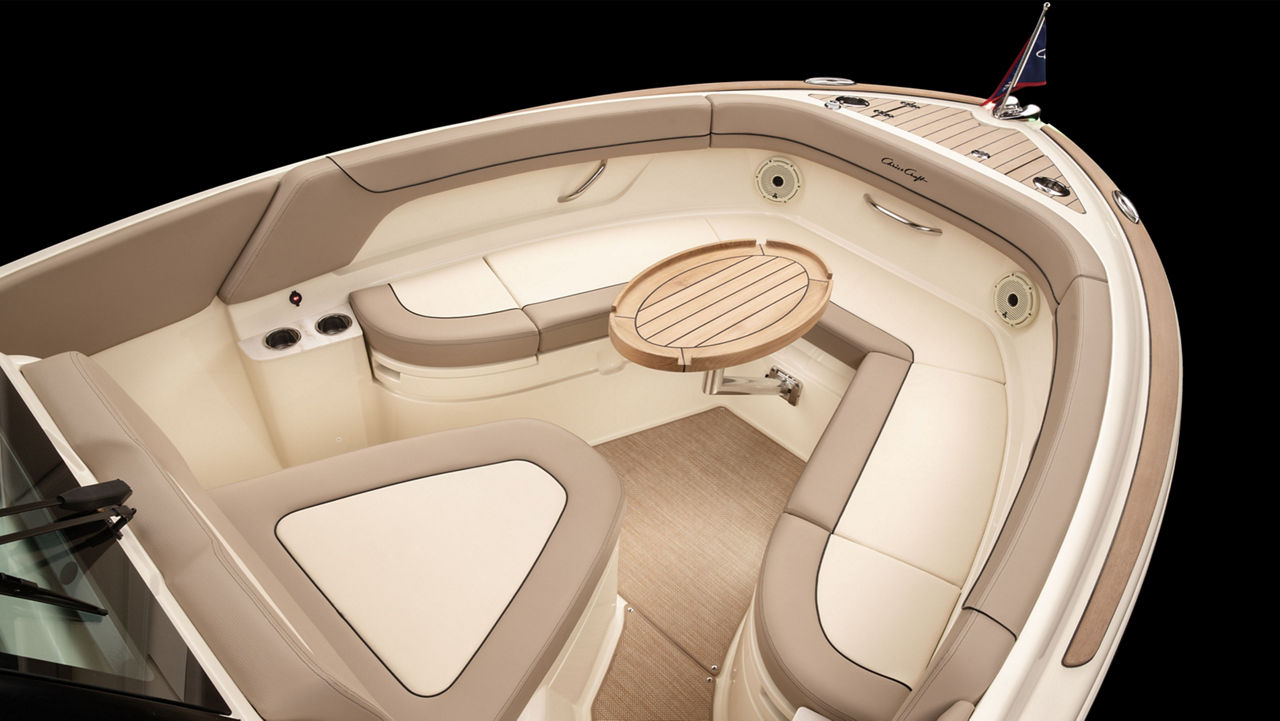

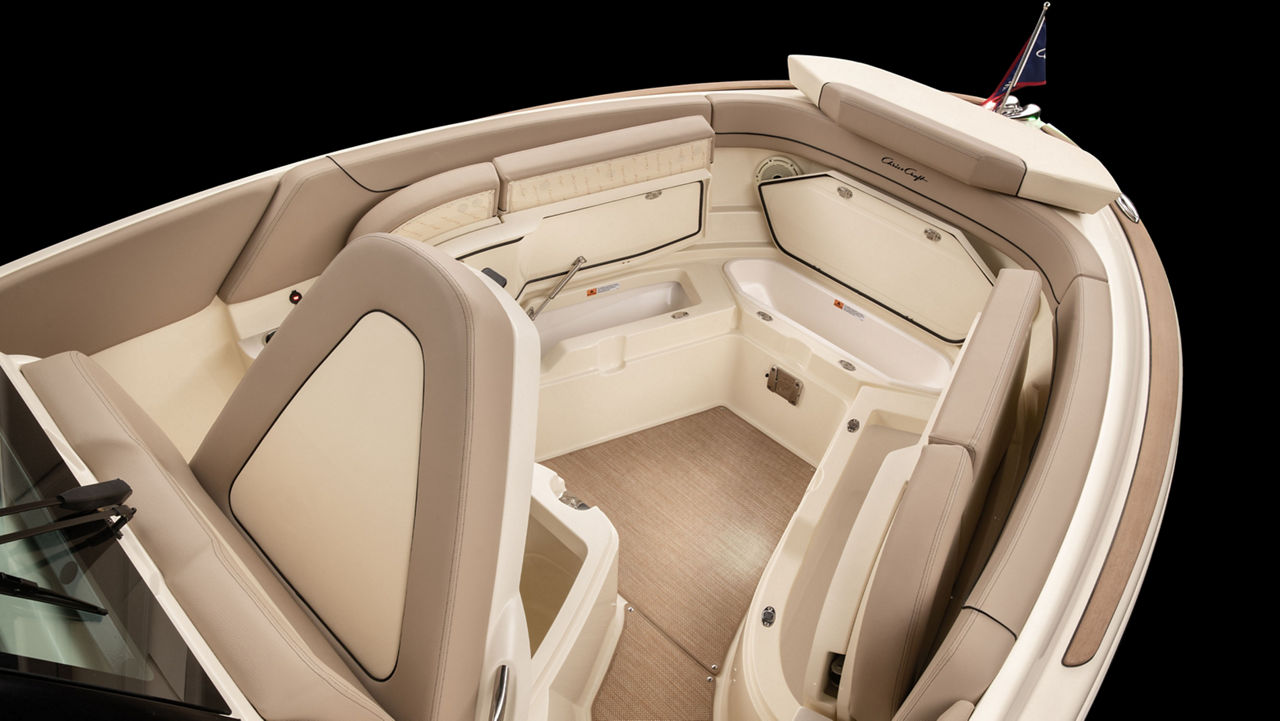

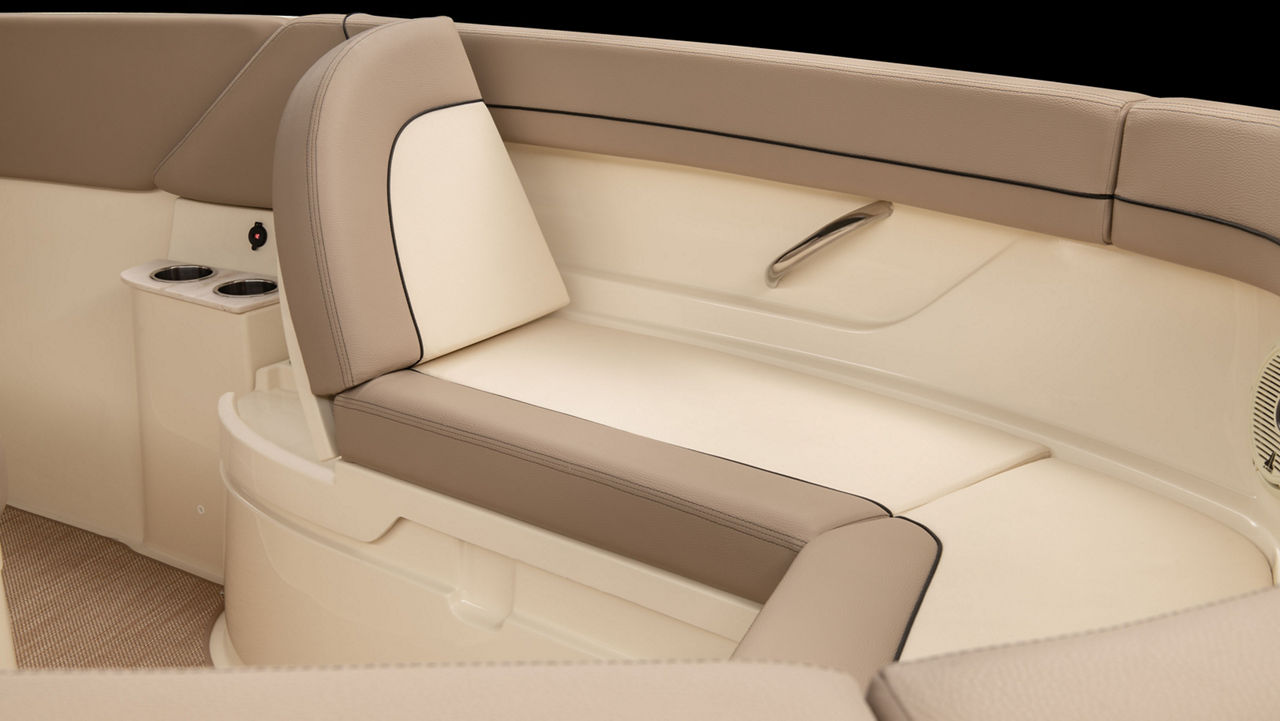

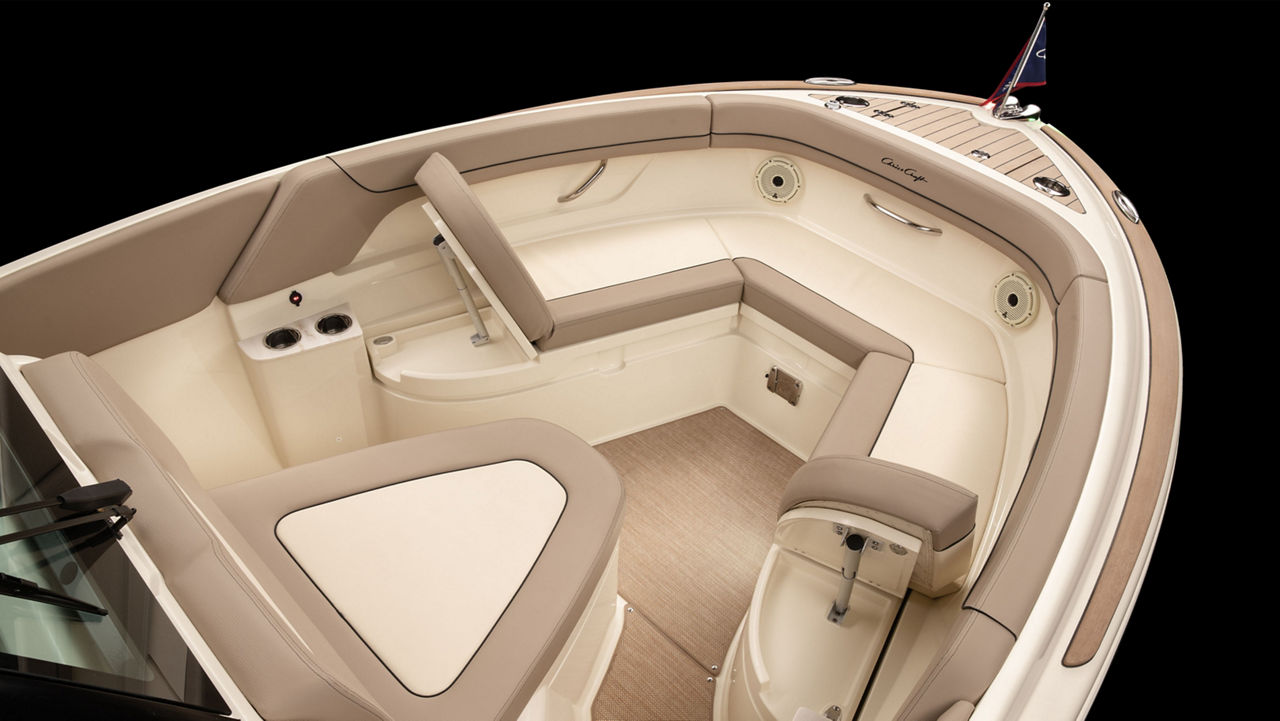

The Catalina 24 features a unique reversible helm seat that adjusts for optimal visibility for the captain, or a focus on socializing. An available teak table deploys in the aft or bow, as you wish. An easy walk around the pilothouse takes you to the spacious bow with its custom-upholstered convertible seating, magnetic cushions for easy cleaning, and plentiful storage. An entertainer’s dream.
- KEY FEATURES
- GALLERY
- SPECS

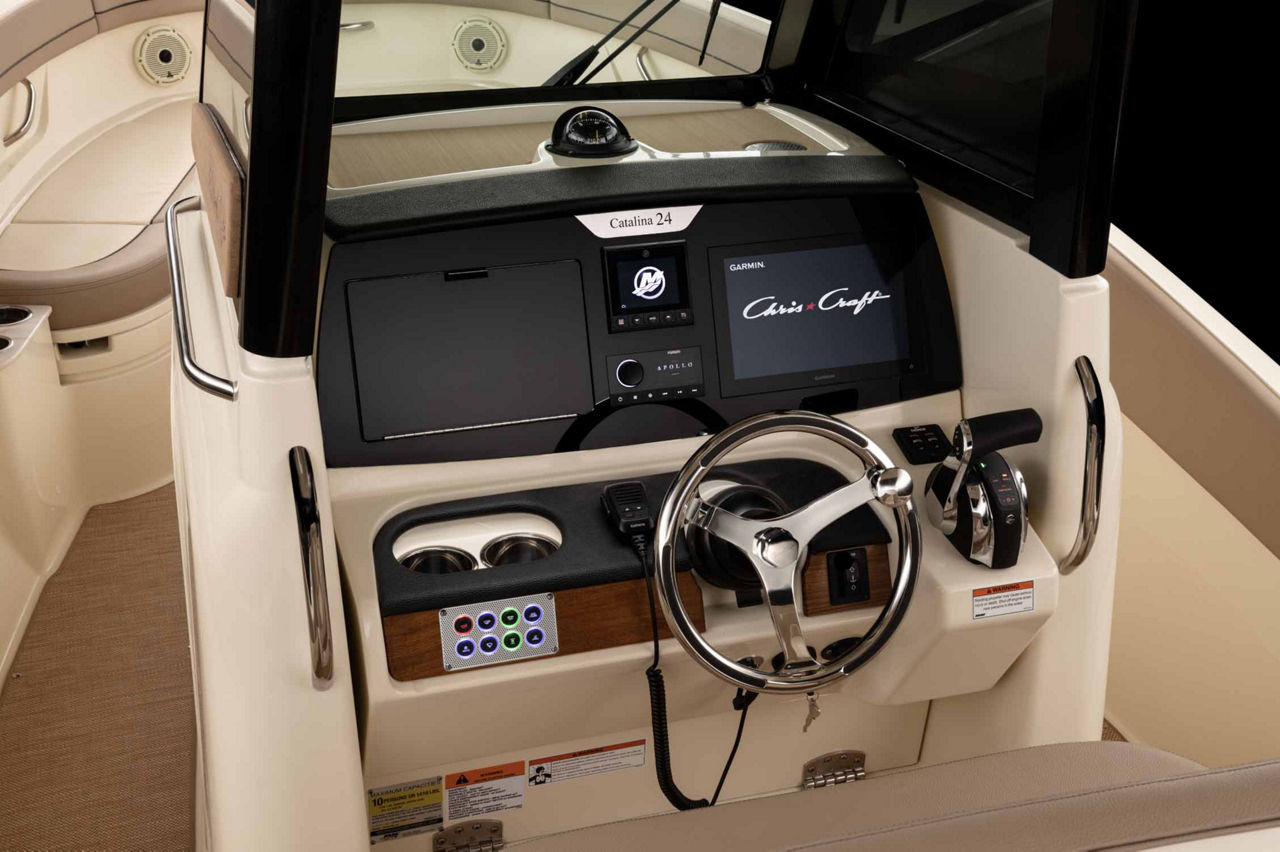

COMMAND CENTRAL

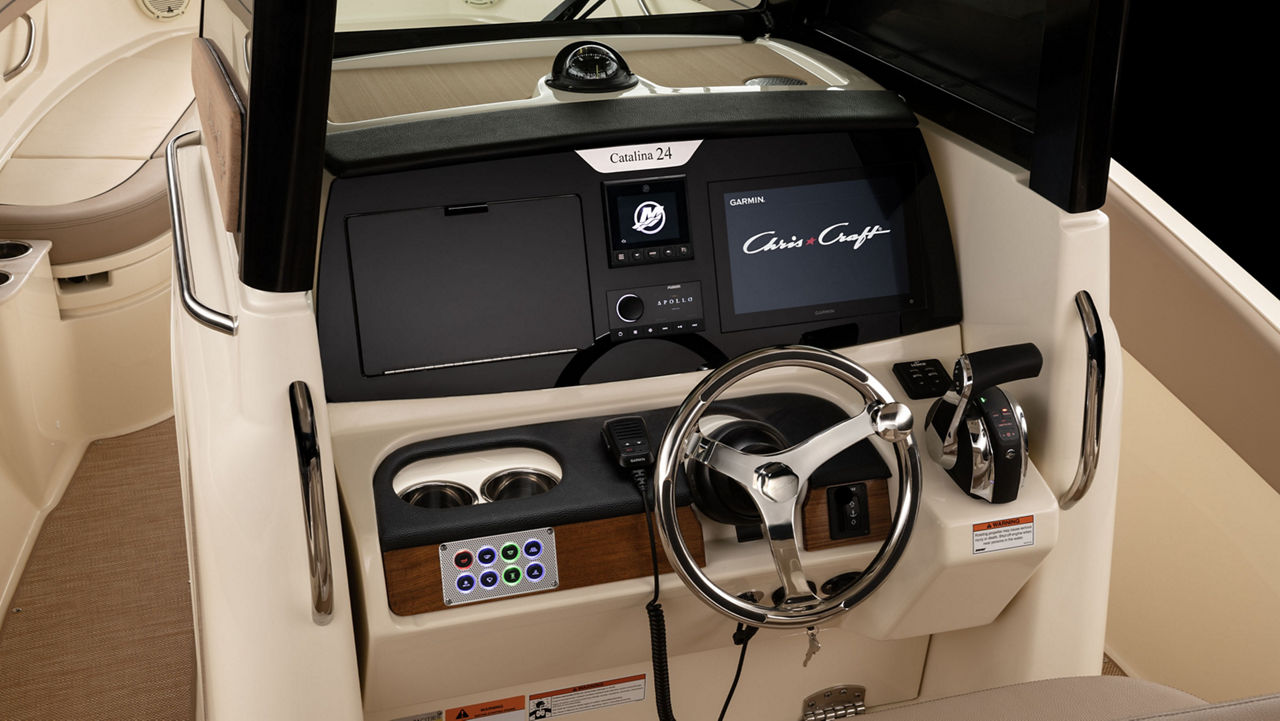

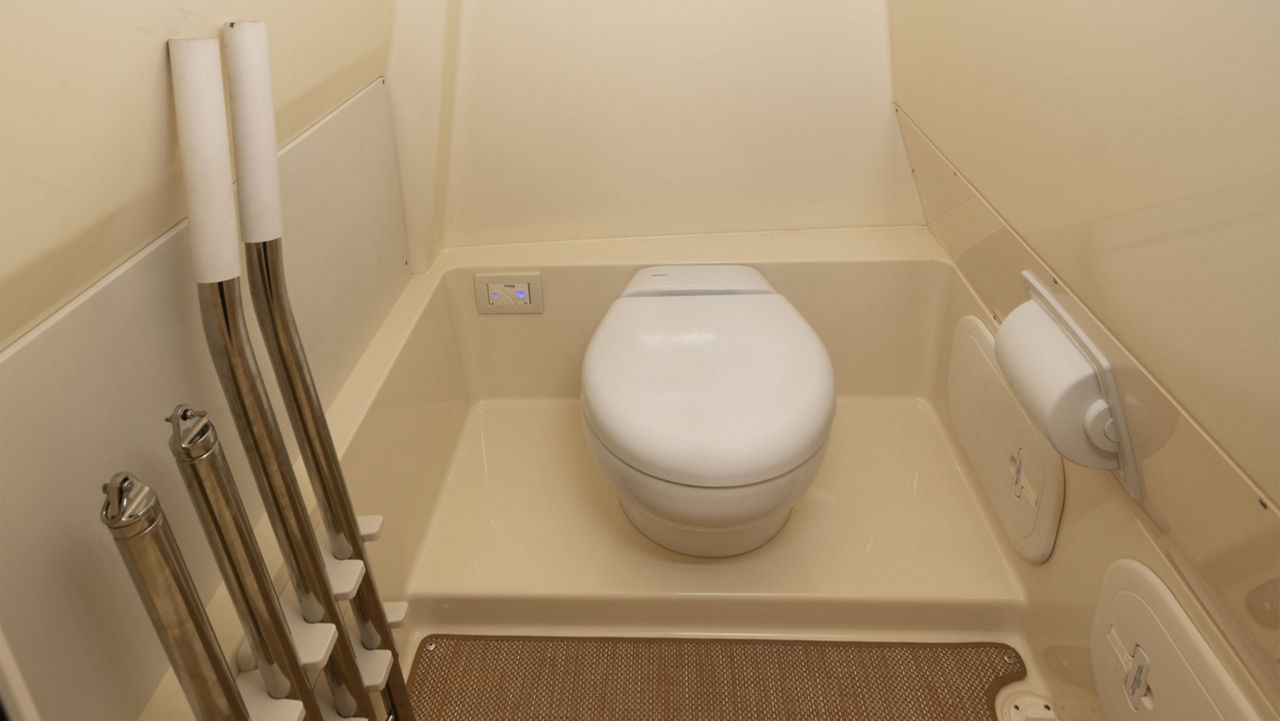

The standard pilothouse hardtop provides shade and protection from the elements while at the helm, and even includes an inductive phone charger. Its elegant styling enables easy movement around the deck, while an integrated head extends your time on the water.

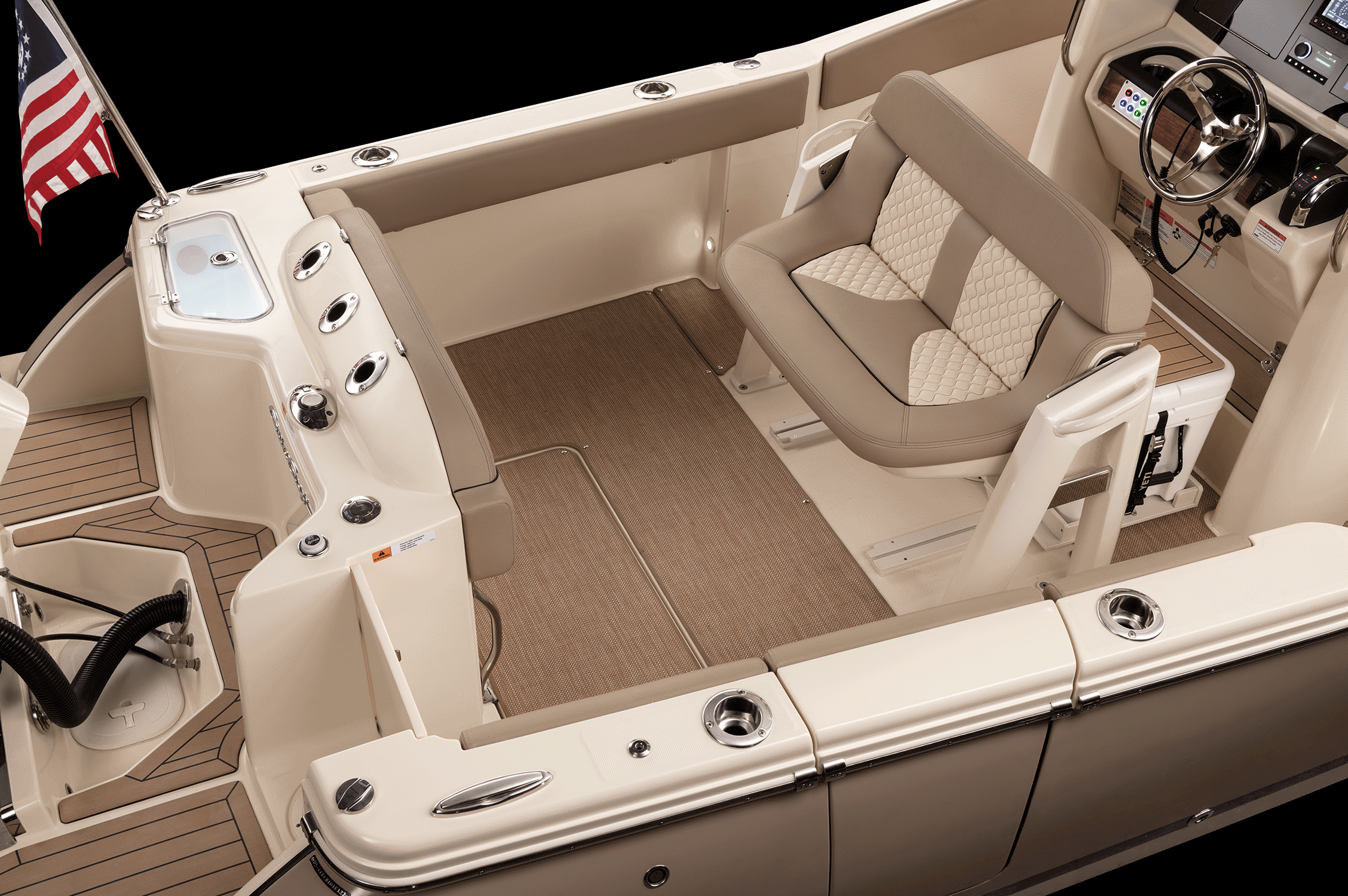

SOCIALLY SAVVY

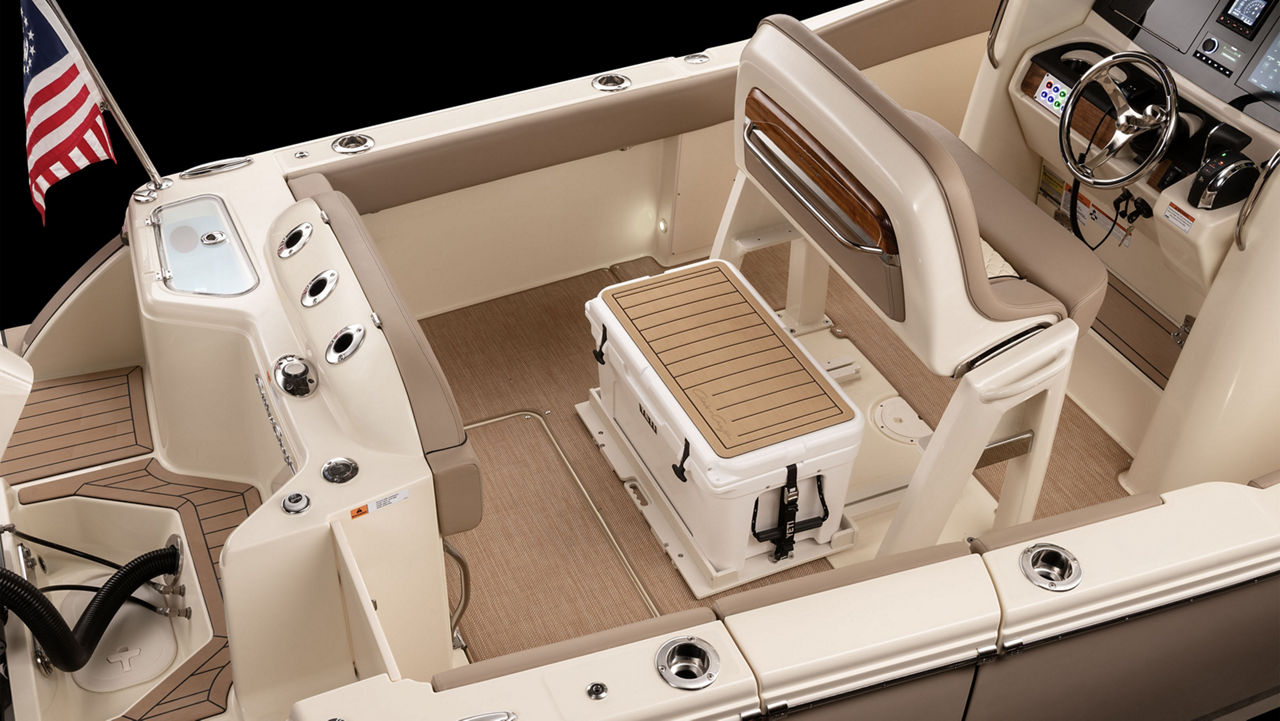

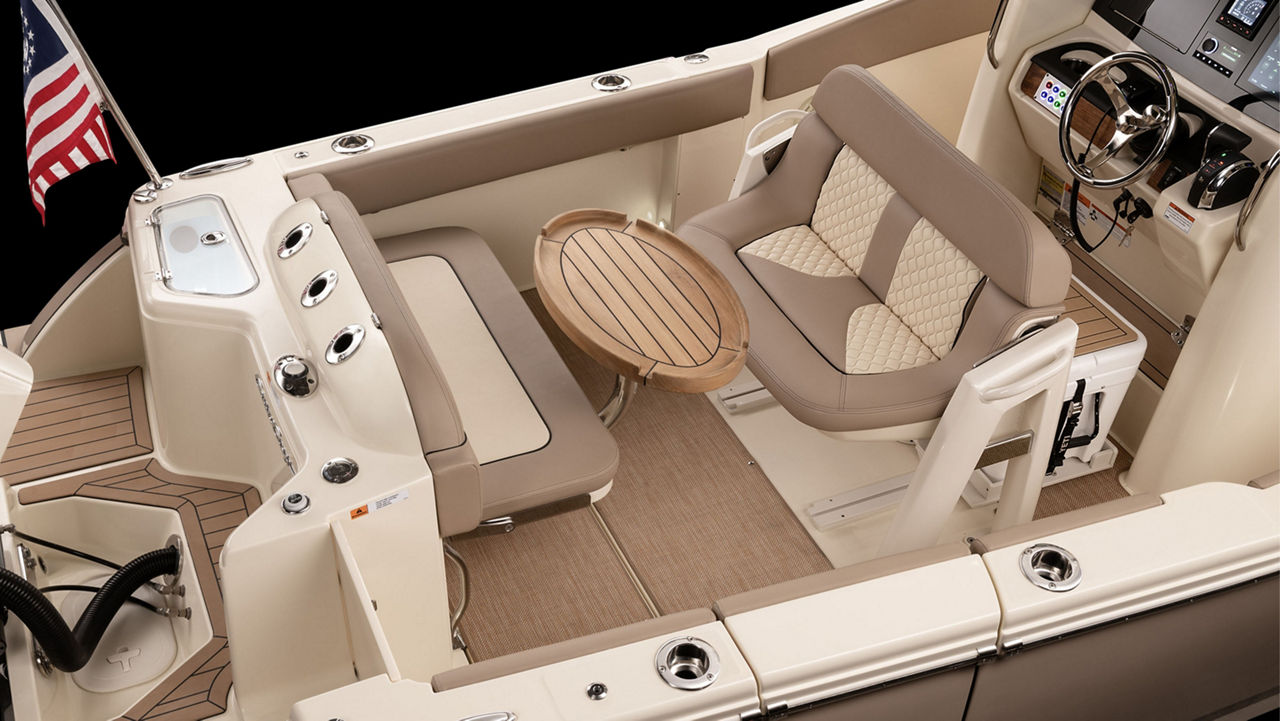

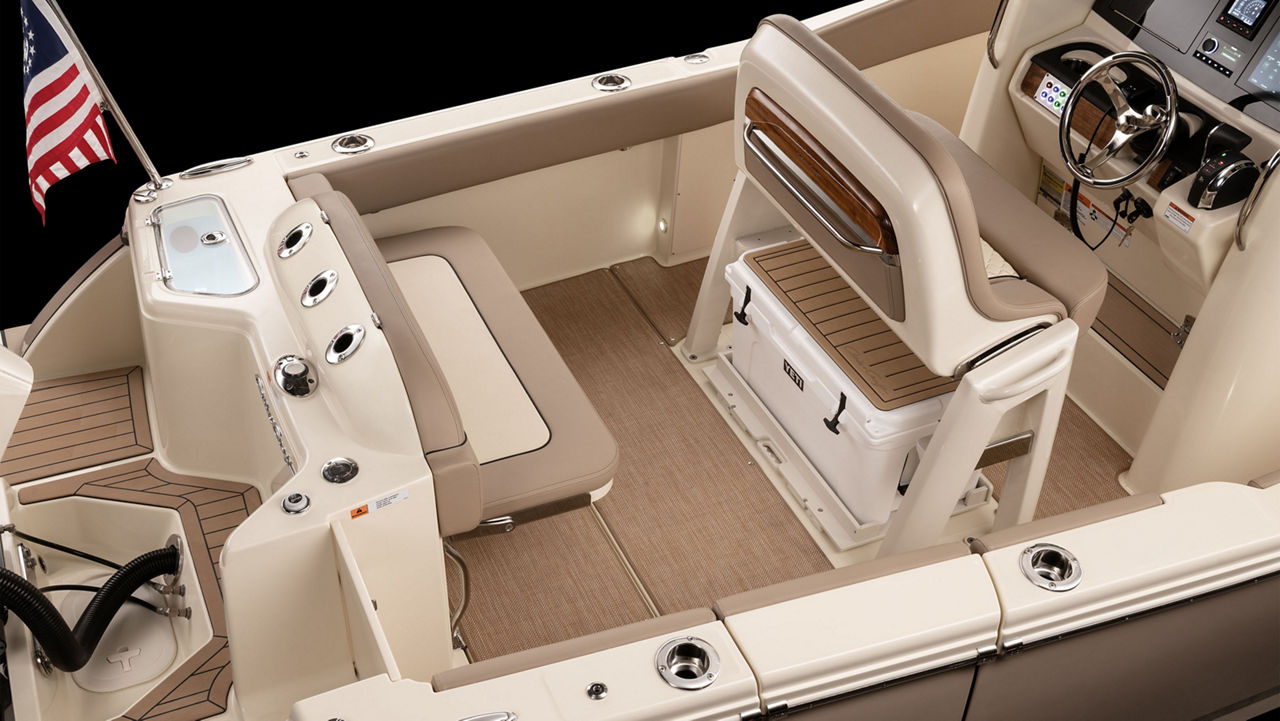

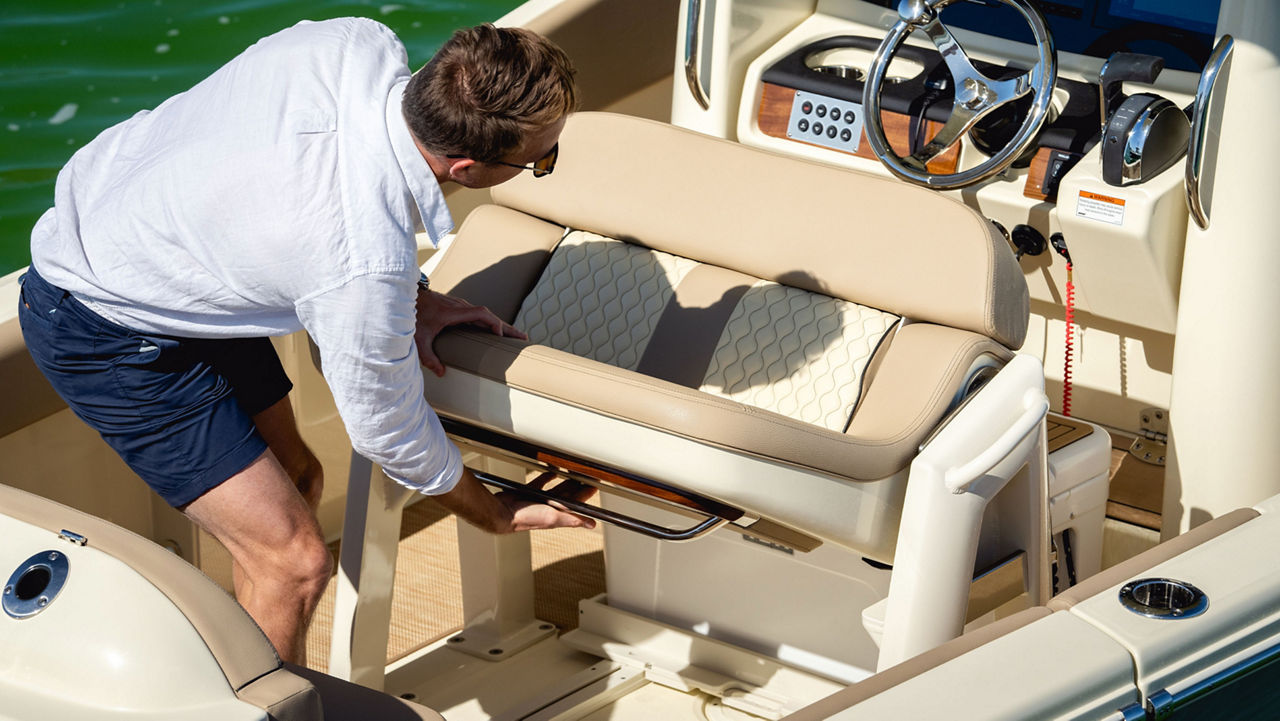

The patent-pending reversible helm seat provides unique seating flexibility. Position it forward for optimal visibility for the captain, or slide the included YETI® cooler forward and flip the seat to face aft and socialize. The aft seat stows for a roomier cockpit.

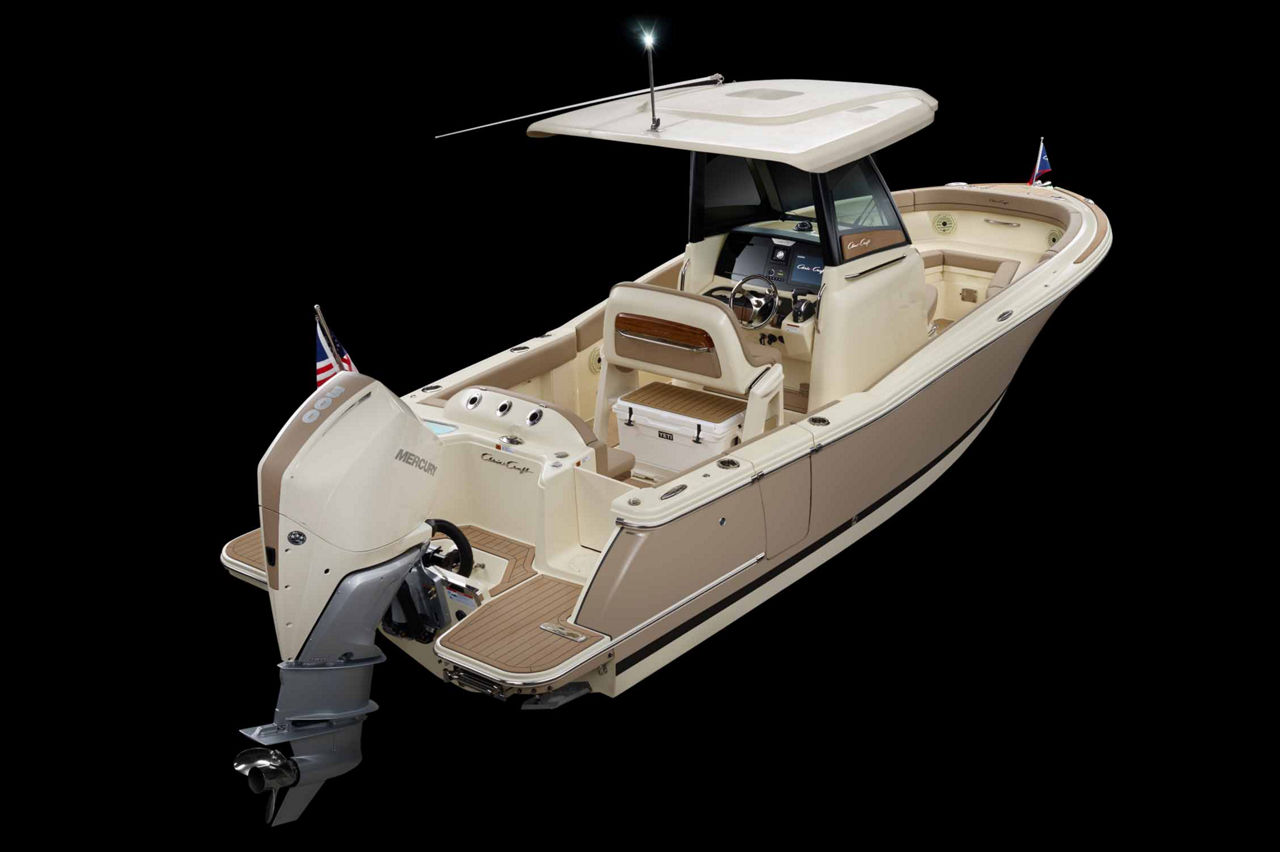

BEAUTIFULLY APPOINTED
The extended transom eases water access for swimmers, while a unique side-boarding door opens a walkway to the dock. Also included is an insulated compartment, which can be fitted with an optional pump and drainage to serve as a live well.

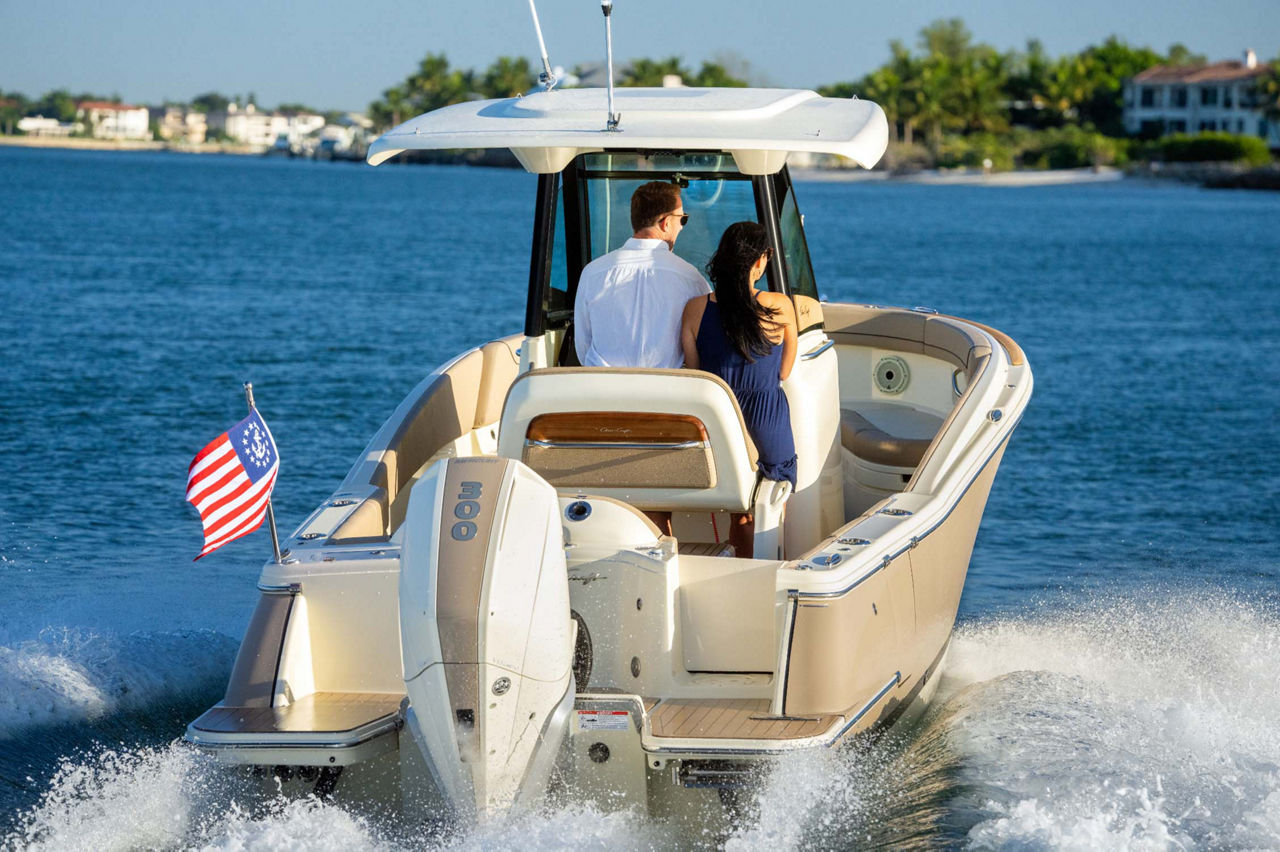

YOURS TO CUSTOMIZE
Select the Heritage Edition for a full teak floor, teak covering boards, and teak accents throughout. You can also optimize your Chris-Craft boat with options such as a custom-painted outboard engine, storable Mediterranean sun shades, and a remote-controlled windlass with a stainless steel anchor.
STEADY & STABLE
Enhance stability when underway. Optimize your running angle at any speed. Keep your deck level regardless of weight distribution. And enjoy smooth and comfortable turns. Introducing Seakeeper Ride, the only Vessel Attitude Control System™ (VACS). Standard on the Catalina 24.
VIEW THE EXTERIOR

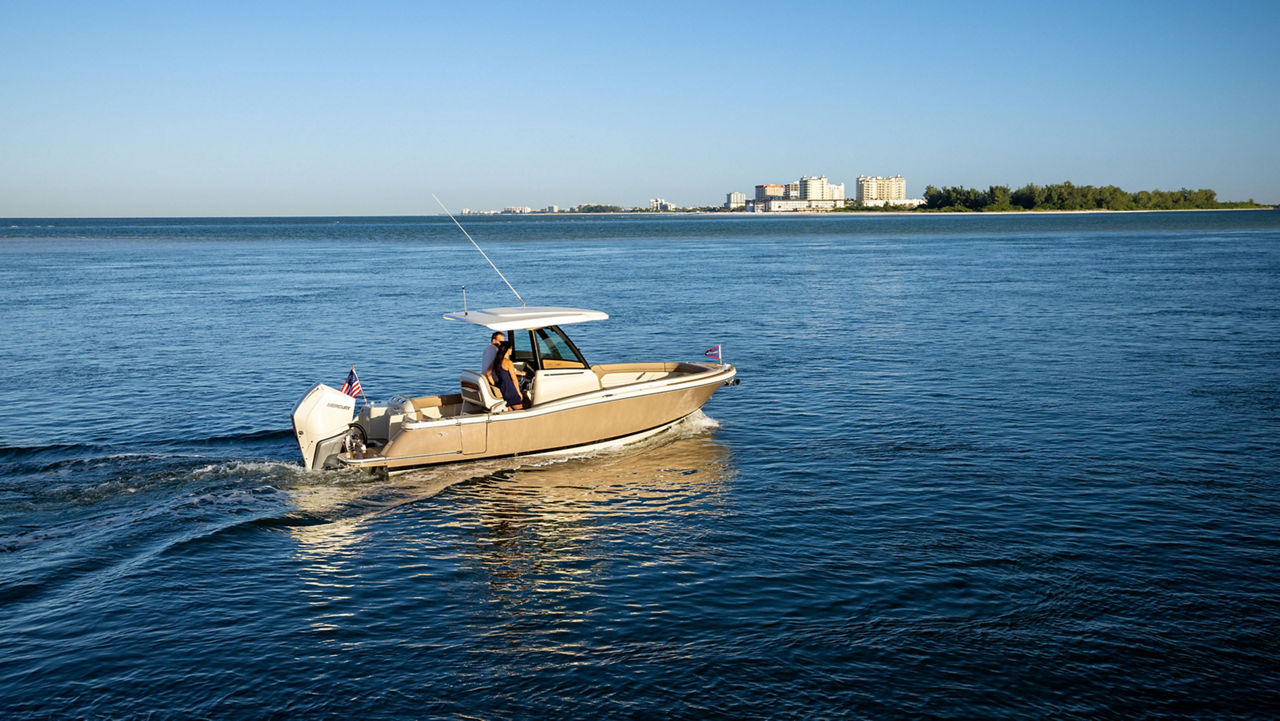

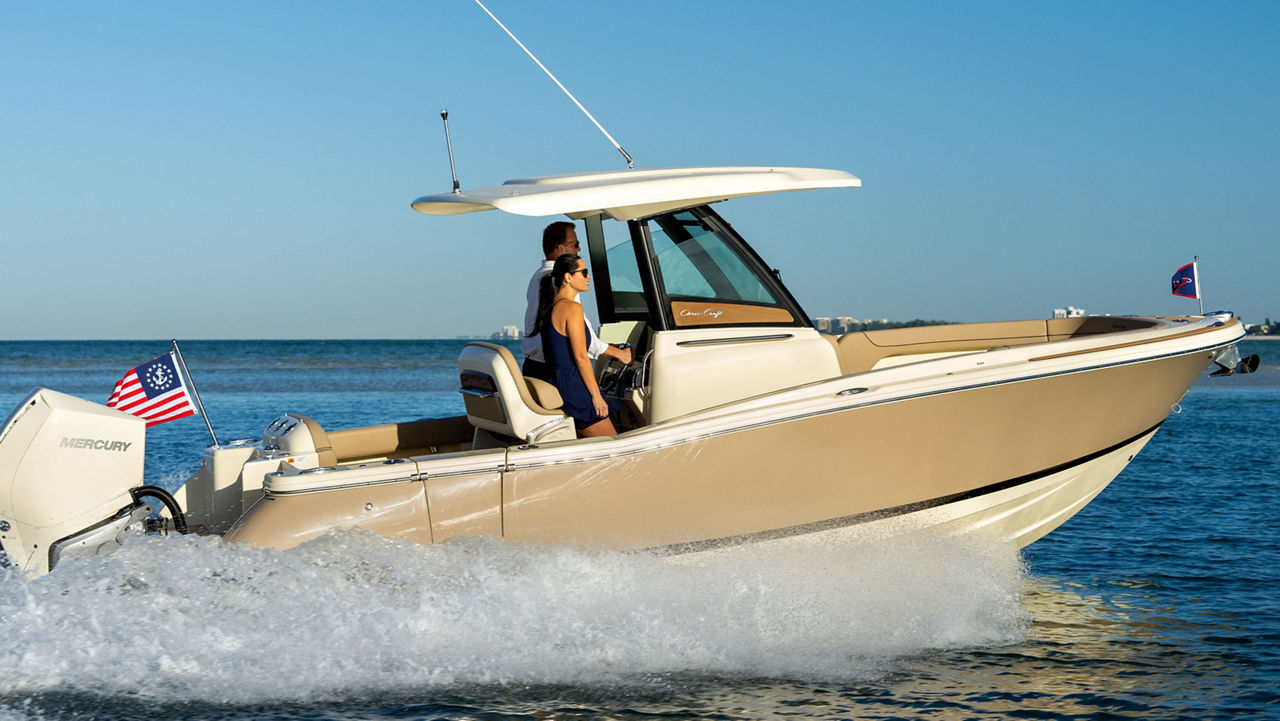

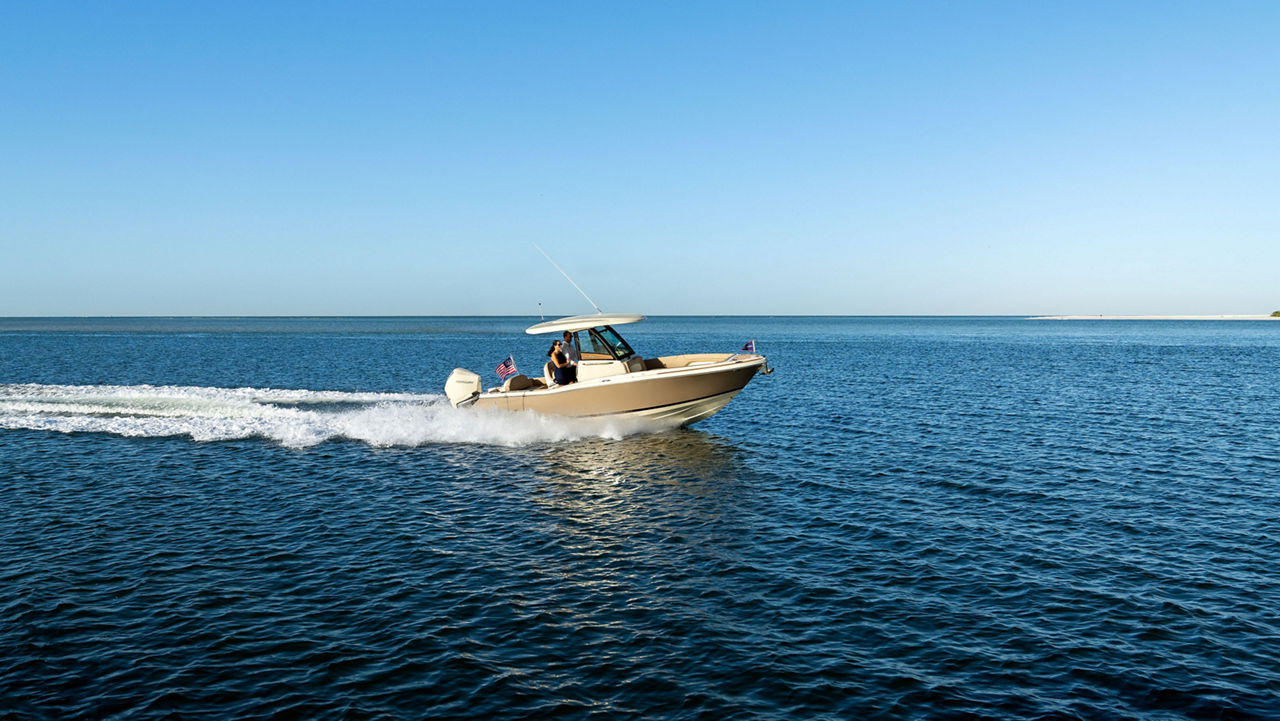

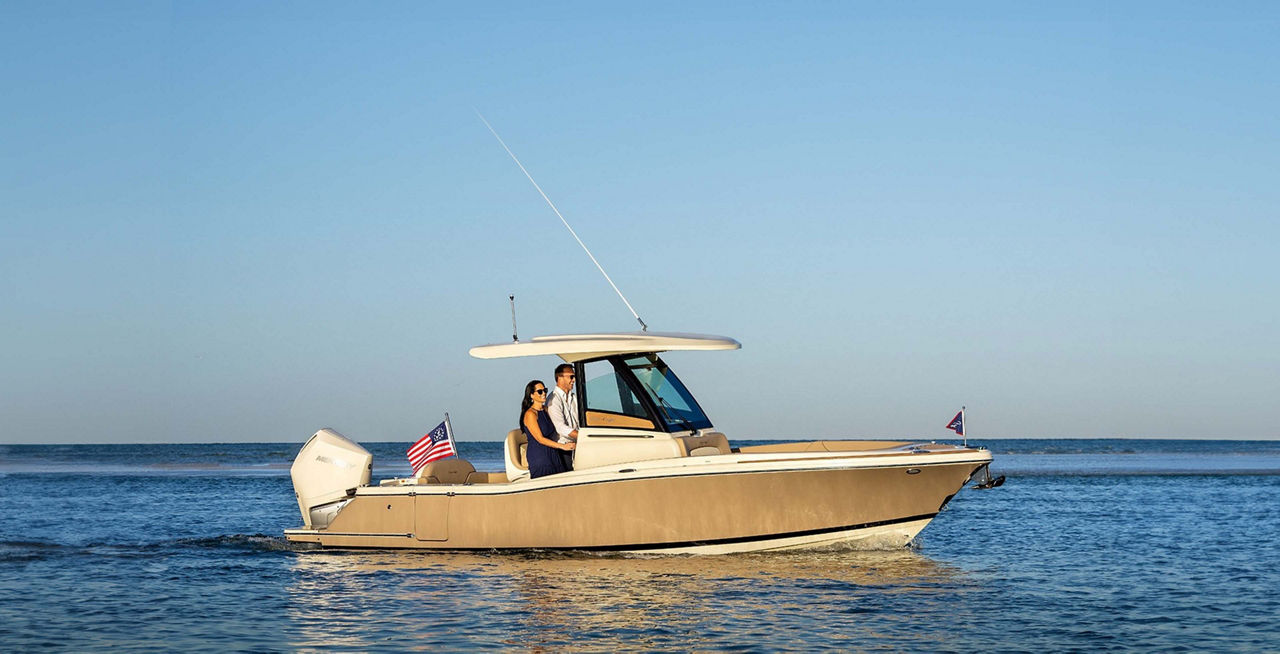

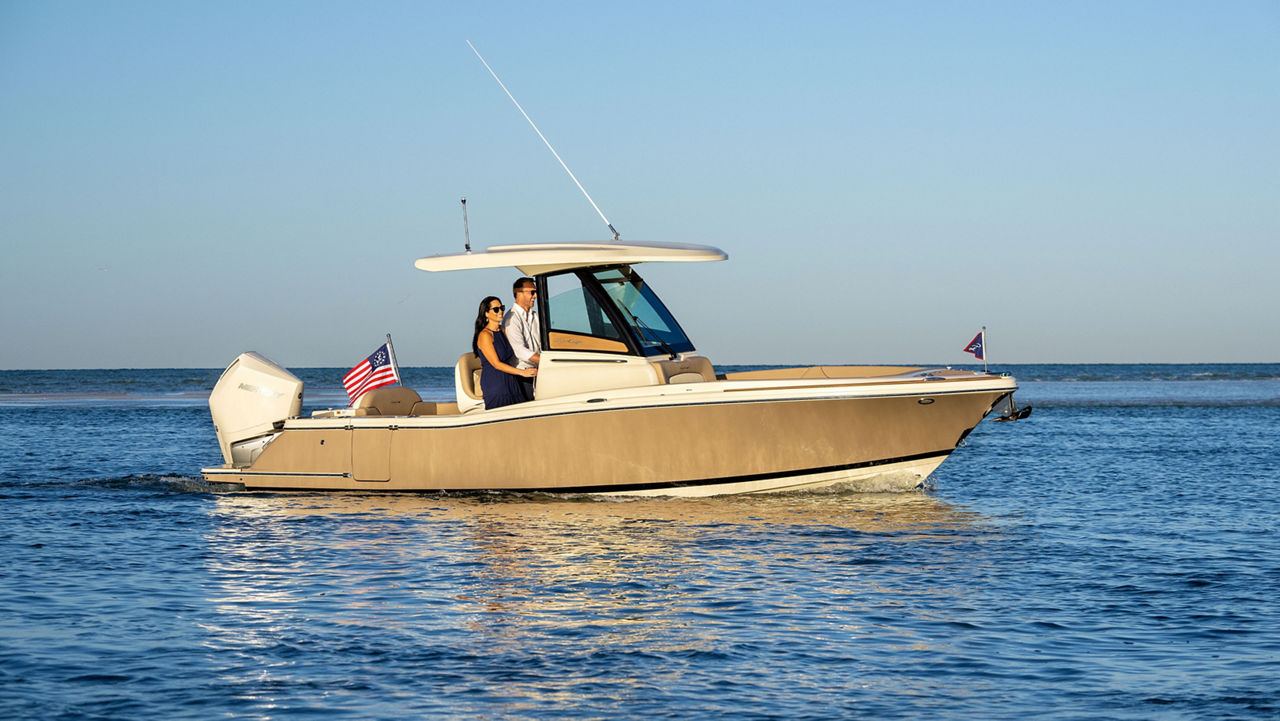

The stylish silhouette of the Catalina 24

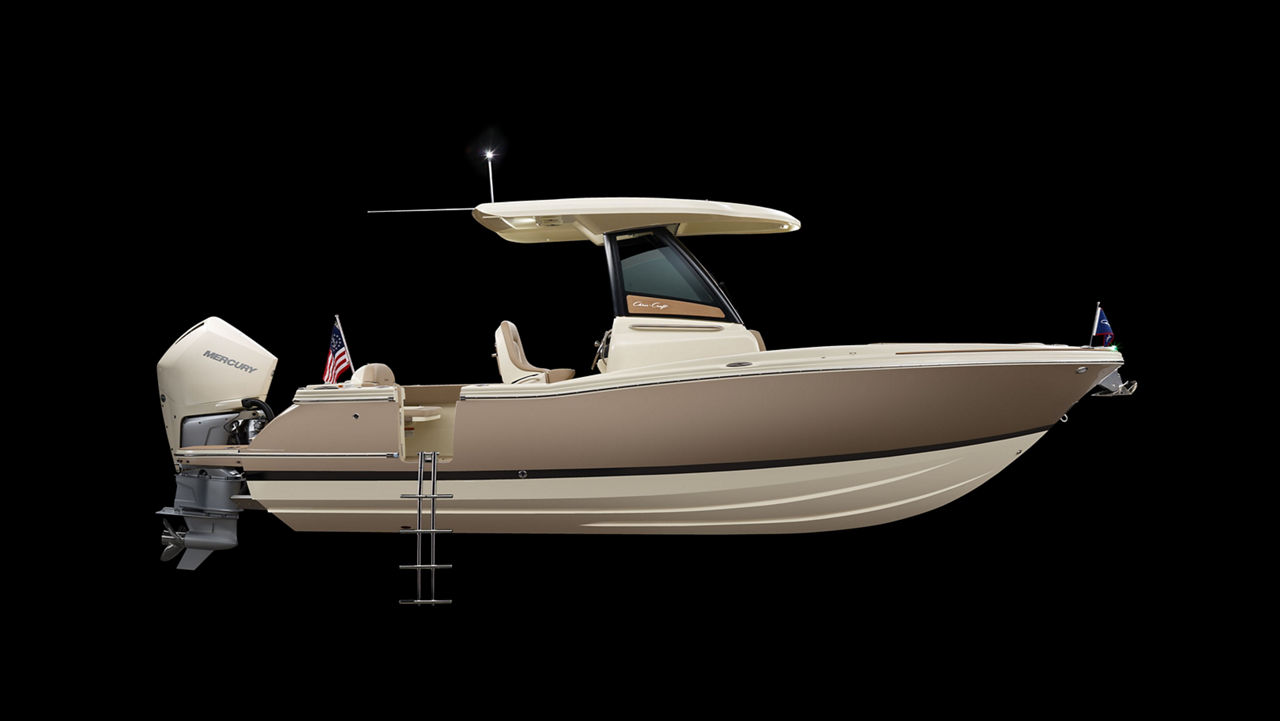

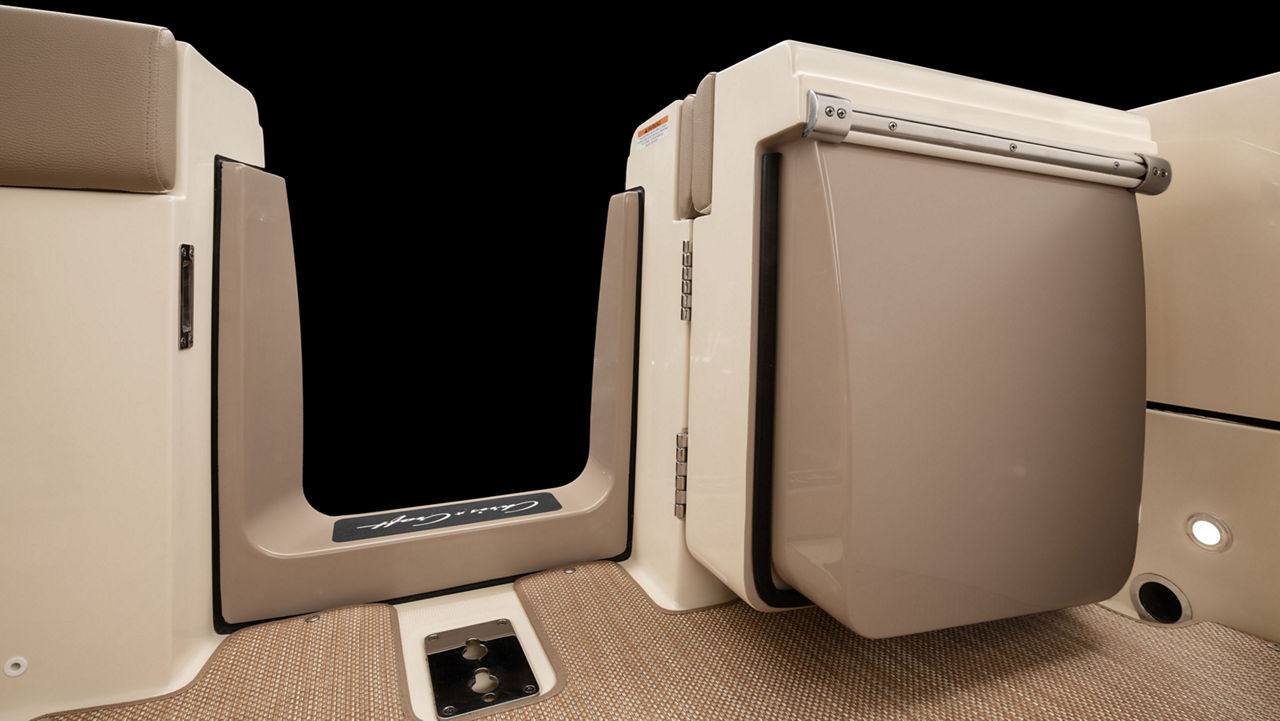

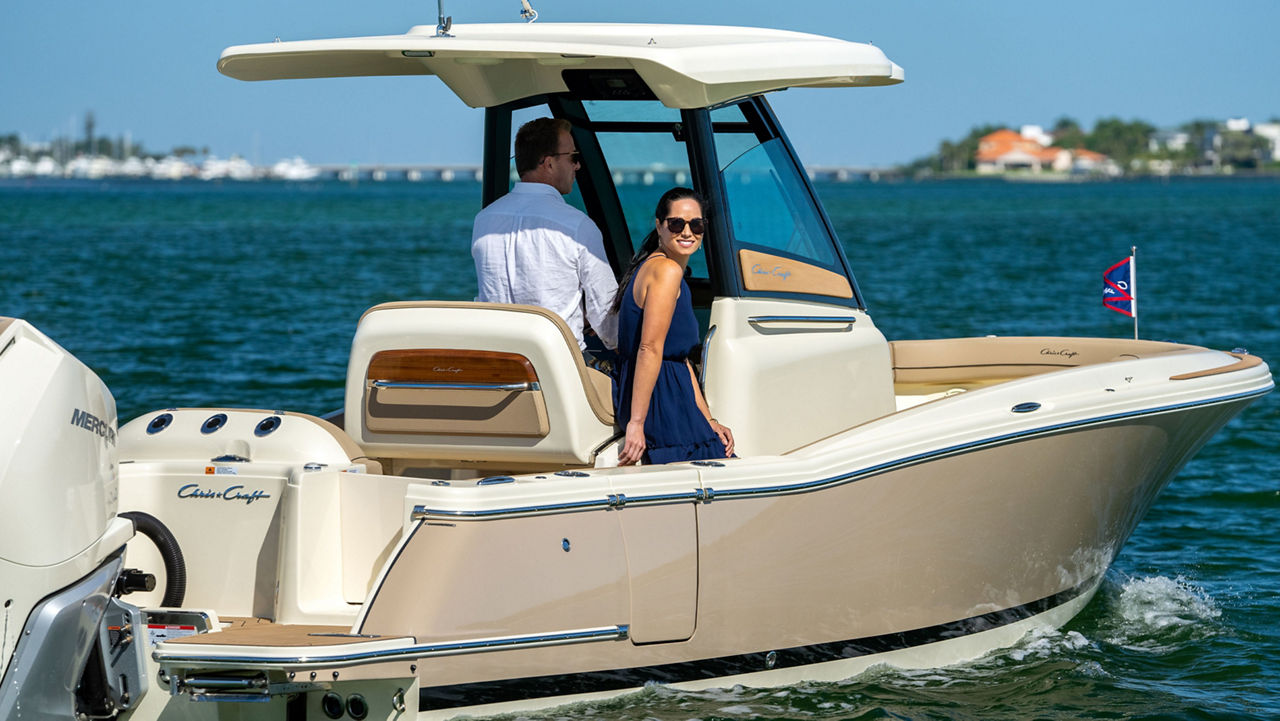

Cockpit side-boarding door with ladder

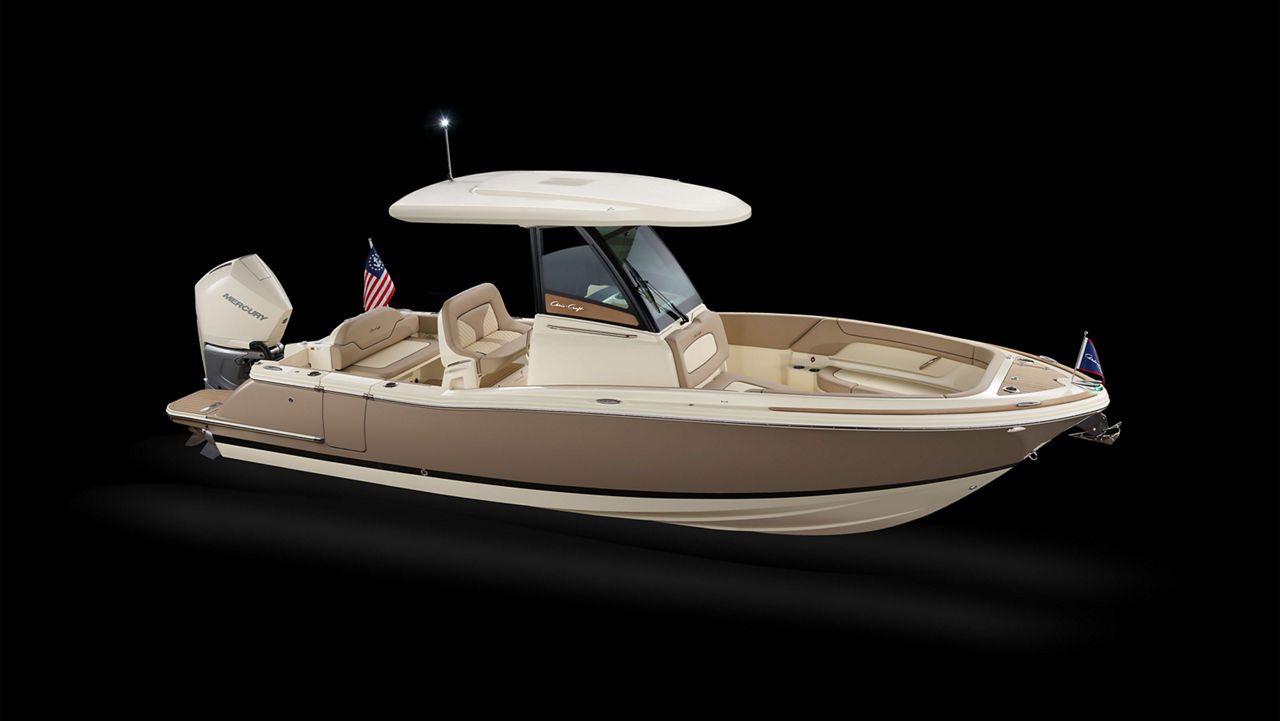

Hardtop shade protection

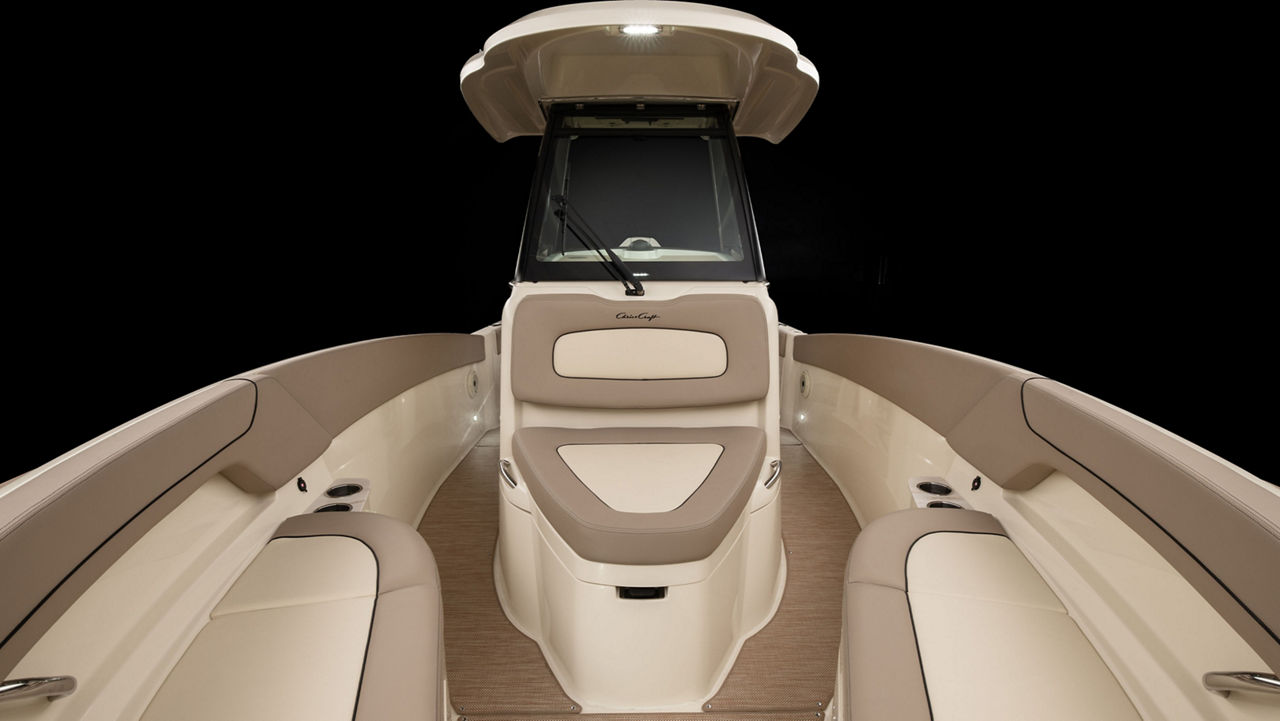

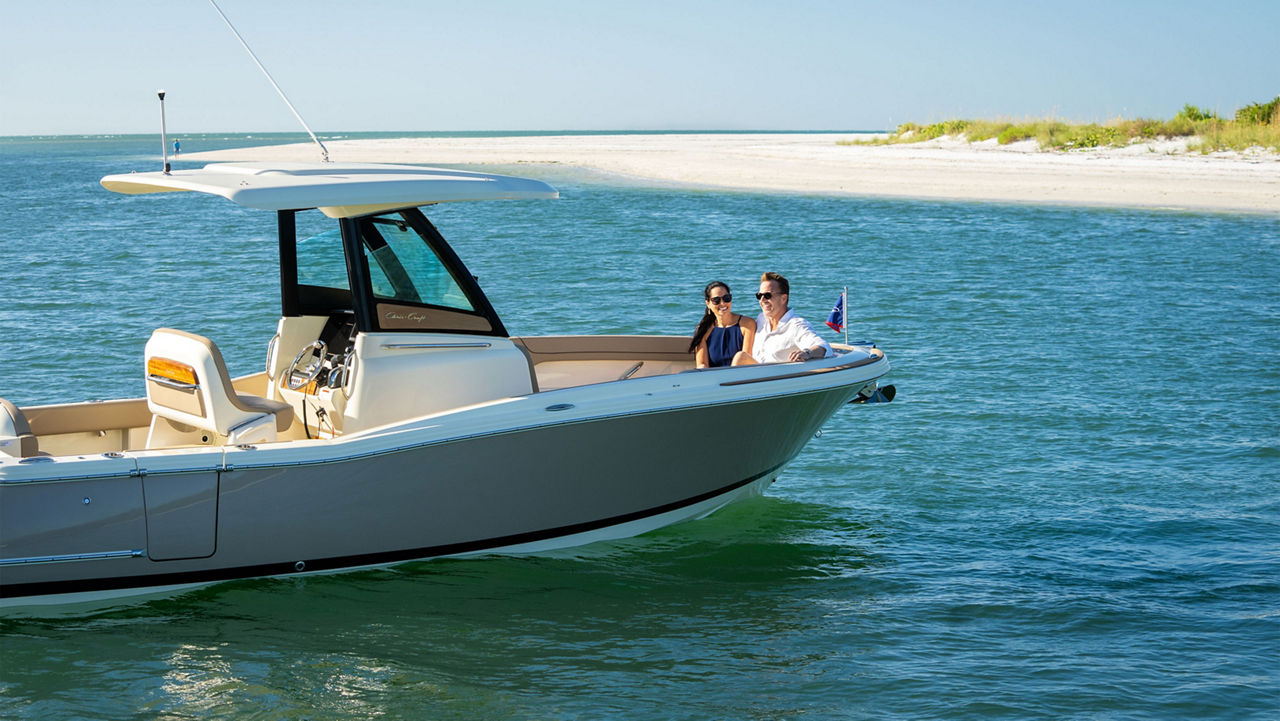

Full walk-around pilothouse design

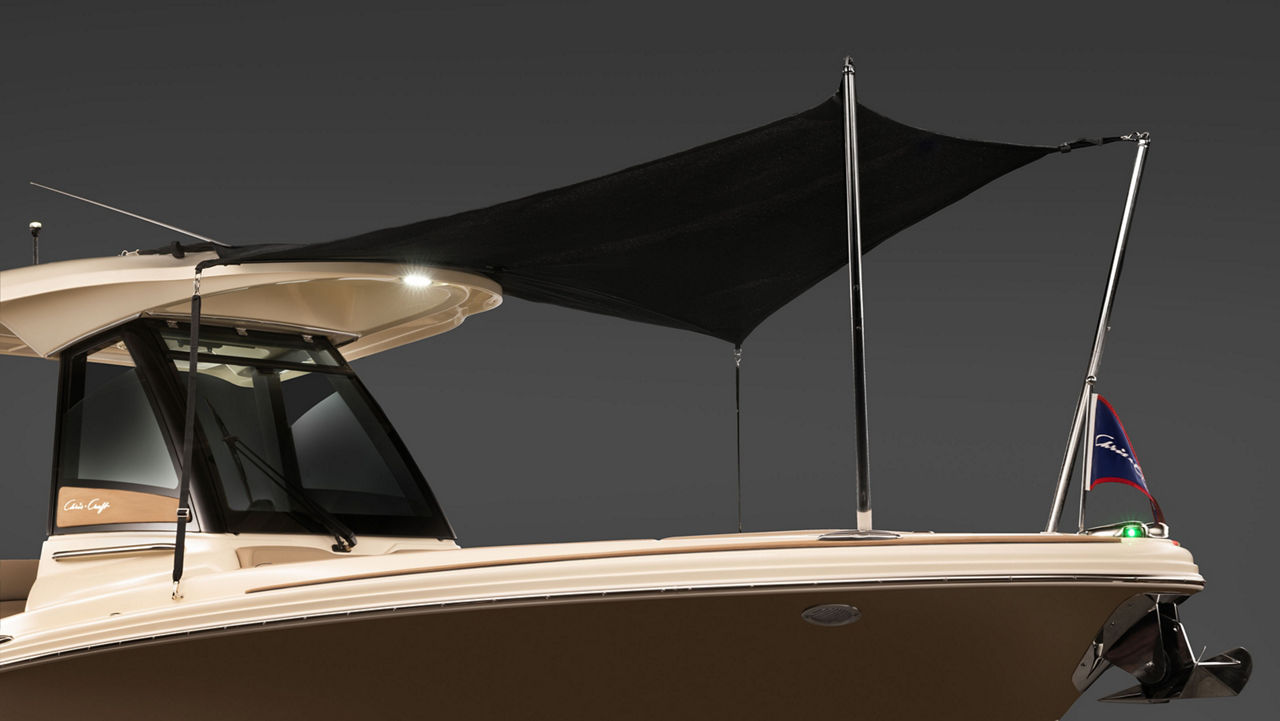

Mediterranean bow sun shade

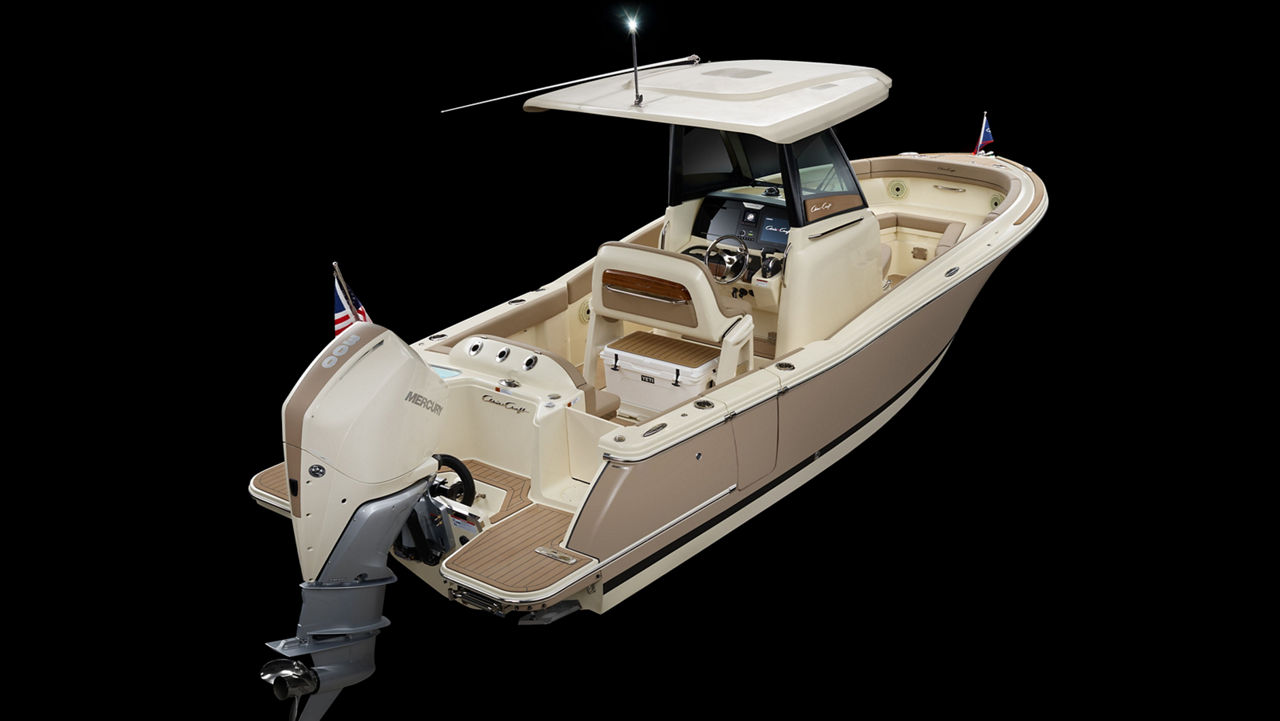

Transom entry door and wraparound swim platform

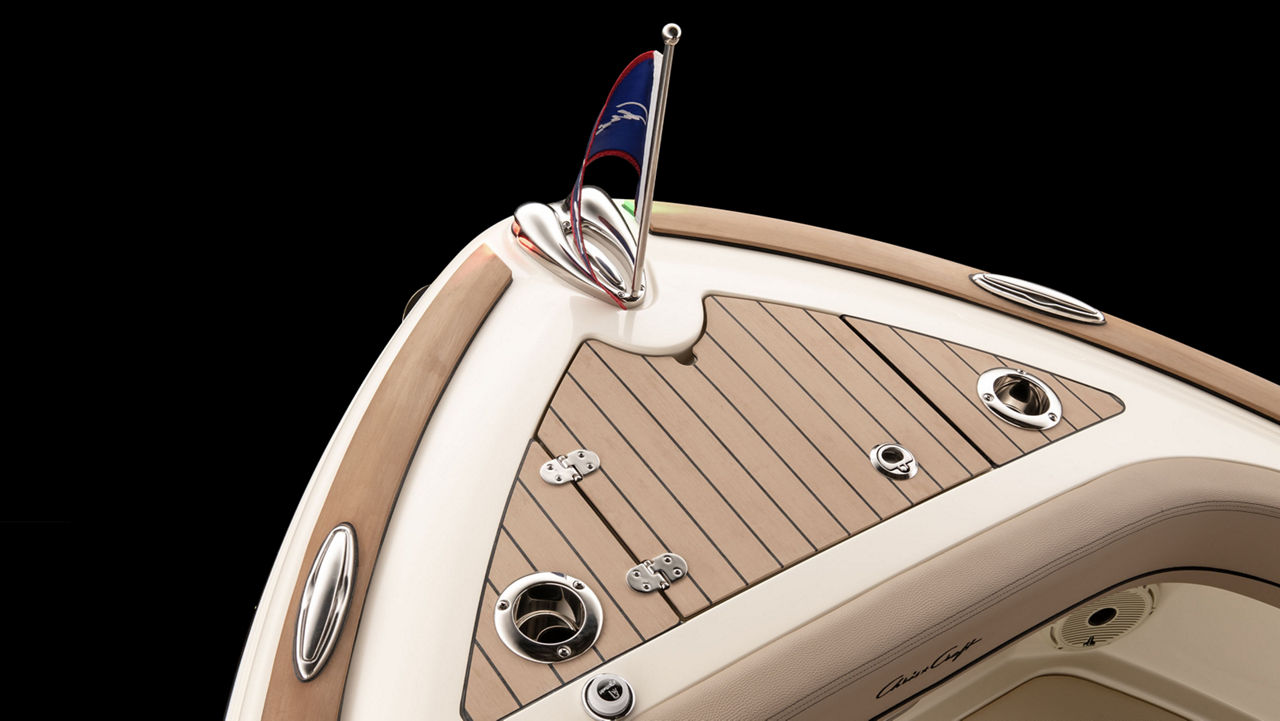

Highest-quality marine stainless steel

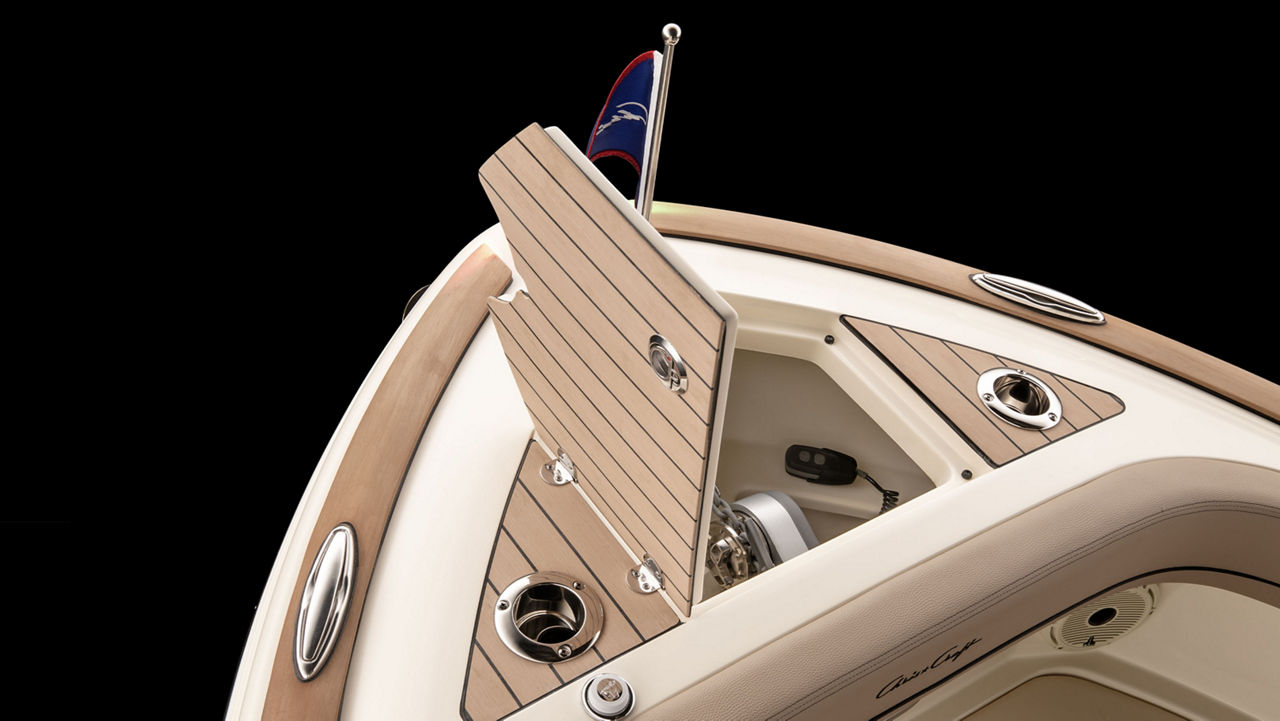

Anchor locker with windlass

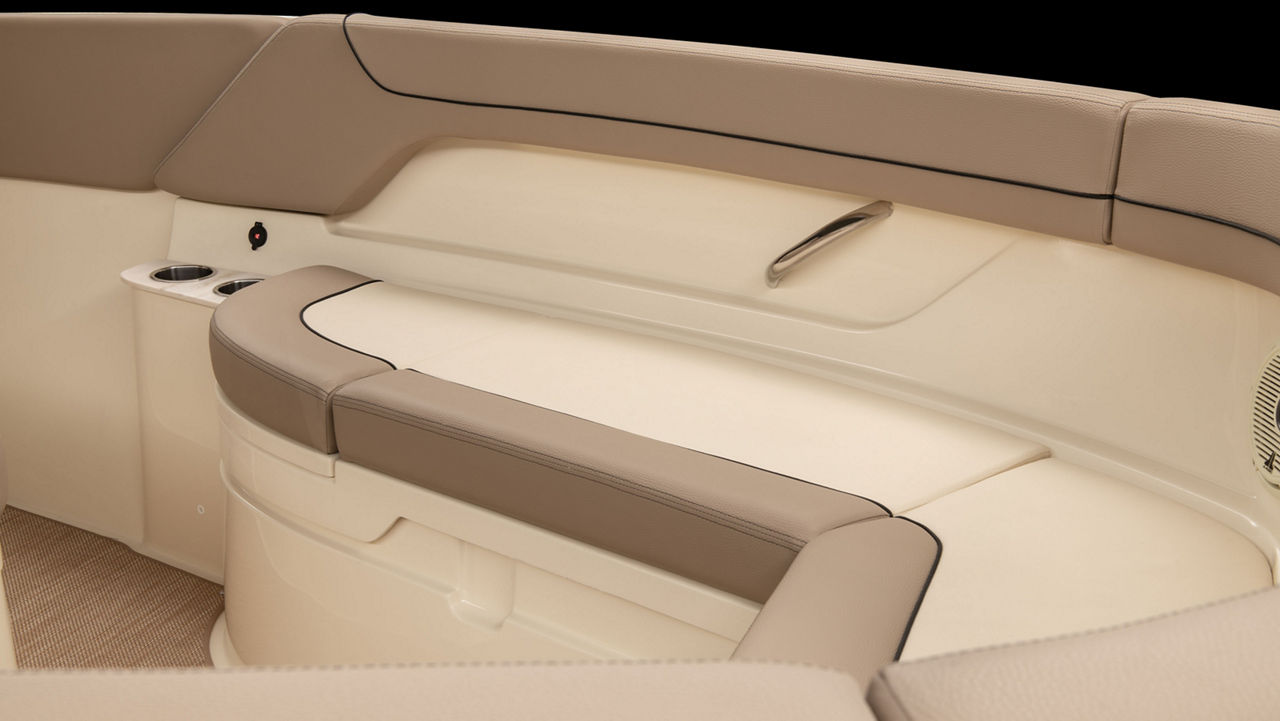

EXPLORE THE INTERIOR
WATCH THE WALK-AROUND
CATALINA 24 SPECIFICATIONS
DIMENSIONS
| Length Overall with Engine | 26'10" | 8.2 m |
| Hull Length without Engine | 25'3" | 7.7 m |
| Length Waterline | 19'10" | 6.0 m |
| Maximum Beam | 8'6" | 2.6 m |
| Maximum Beam at Length Waterline | 7'4" | 2.2 m |
| Hull Draft: Engines Up | 1'7" | 0.48 m |
| Hull Draft: Engines Down | 2'9" | 0.84 m |
| Maximum Height | 12'5" | 3.8 m |
| Height: Waterline to Hardtop | 7'6" | 2.3 m |
| Kneel to Top of Windshield | 7'6" | 2.3 m |
| Dry Weight with Engine (1x 400 Mercury) | 6,090 lbs | 2,762 kg |
| Freeboard at Midship | 2'10" | 0.86 m |
| Dead Rise | 21° | 21° |
| Transom Angle | 12° | 12° |
| Fuel Capacity | 117 gal | 443 L |
| Fresh Water Capacity | 14 gal | 53 L |
| Persons Capacity | 10 | 10 |
| Loaded Displacement | 7,735 lbs | 7,735 lbs |
| Maximum Engine Horsepower | 400 HP | 400 HP |
| Maximum Engine Weight (430 Mercury) | 785 lbs | 356 kg |
EDITION SELECTION
| Standard Edition – Synthetic Teak Bow Anchor Locker, Covering Boards, Helm Footrests, and Swim Platform |
| Heritage Trim Edition – Teak Bow Anchor Locker, Covering Boards, Helm Footrests, Swim Platform, and Forward Coaming Rails |
| Heritage Edition – Full Teak Floor, Bow Anchor Locker, Covering Boards, Helm Footrests, Swim Platform, and Forward Coaming Rails |
TOP SELECTION
| Pilothouse |
TOP OPTION
| Rod Holders – Hardtop Mounted |
ENGINE TYPE
Mercury Verado® | 300 HP | 4-Stroke – Digital Throttle and Shift |
Mercury Verado V10 | 350 HP | 4-Stroke – Digital Throttle and Shift |
Mercury Verado V10 | 400 HP | 4-Stroke – Digital Throttle and Shift |
ENGINE OPTIONS
| Active Trim |
| Custom Color-Painted Outboard |
| Custom-Painted Engine Accent Panel |
| Ivory Cream-Painted Outboard |
SEAT CONFIGURATION
| Reversible Helm Seat with Slide-Out Cooler |
ADDITIONAL OPTIONS
| Air Compressor - 12V with Storage Rack |
| Battery Charging System |
| CE Certification |
| Cover – Outboard |
| Cover - Mooring |
| Fender Clips (4) |
| Flooring - Woven Seagrass (n/a with Heritage Edition) |
| Garmin® VHF Radio with Antenna |
| Live Well |
| Macerator with Overboard Discharge |
| Mediterranean Storable Sun Shade - Aft |
| Mediterranean Storable Sun Shade - Bow |
| Ocean Shipping Cradle |
| Painted Underside of Pilothouse |
| Pillows – Weighted (4) |
| Premium Audio System |
| Raw Water Washdown |
| SiriusXM® Satellite Radio - USA & CAN Only (No Subscription) |
| Ski Pylon – Pop-Up in Aft Coaming |
| Teak Table with Bow and Aft Bases |
| Tecma Head System (Includes Dockside Pumpout) |
| Underwater Lights (2) |
| Water-Ready – Includes Batteries |
| Windlass with Stainless Steel Anchor and Approx. 200' Chain |
| Windlass Prewire |
* Chris-Craft designs, standard features, optional equipment, and all specifications are subject to change without notice, to improve reliability, function, design, or for other reasons.
DOWNLOAD THE BROCHURE
For a full list of standard features and equipment, download the Catalina 24 brochure.
